Product Overview

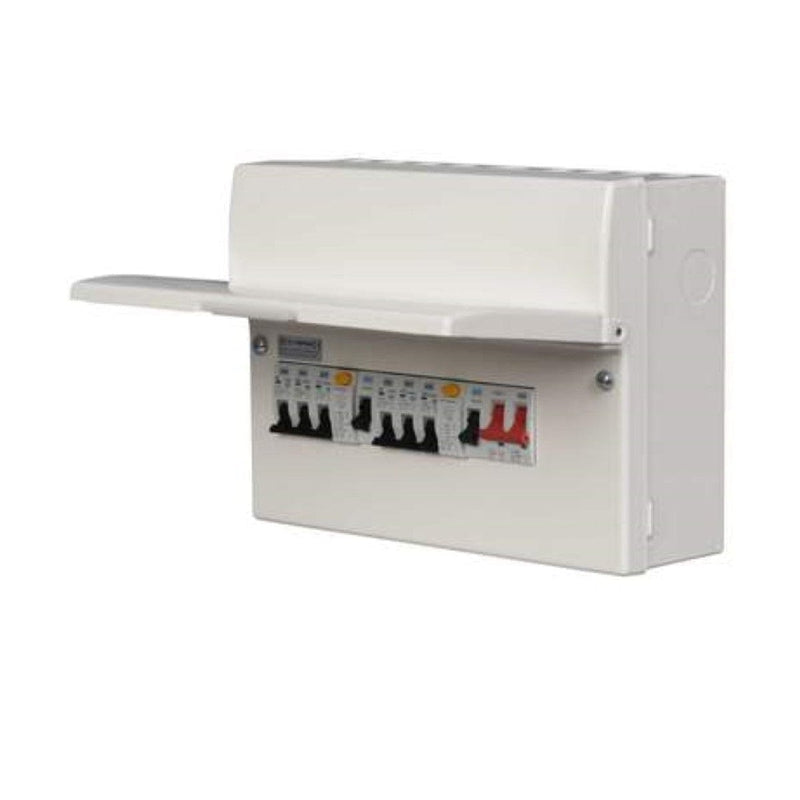

BG 6 Way With 100A Switch 2X 63A 30Ma RCD’S & 6X MCBs - CFUDP16606

This BG range of consumer units offer a flexible solution for the 18th Edition Wiring Regulation BS7671. Available in a range of sizes from 6 way to 16, these consumer units will suit most applications. Each unit has an integrated spirit level aiding installation. Supplied with a 100A main switch and 2 x 63A RCDs. Each unit comes with busbar, label sheet, 2 cover blanks and instructions. These units are fully populated with MCBs. The terminal and busbar design provide maximum flexibility for combination of protected or unprotected circuits.

Product Overview:

• Modules: 12
• Switch: 4
• IP Rating: IP2XC
• Installation: Indoor
• Material: Steel
• Finish: White Gloss
• UV Stability: Yes
• Operating Voltage: 230V AC 50Hz
• Short Current Withstand: 16kA rms
• Main Switch Terminal: 35mm² Capacity
• Main Switch Torque: 2.5 Nm
• RCD Terminal: 35mm² Capacity
• RCD Torque: 63A: 2.5Nm;

Downloads

Download Circuit Protection Range Leaflet

Specification

Domestic or Commercial	Domestic
Door Type	Top Hinged
Housing Material	Steel
IP Rating	IP2XC
Mounting	Surface
MPN	CFUDP16606
Number Of Modules	12
Number Of Ways	6
Depth	122mm
Height	241mm
Weight	5.04kg
Width	325mm
