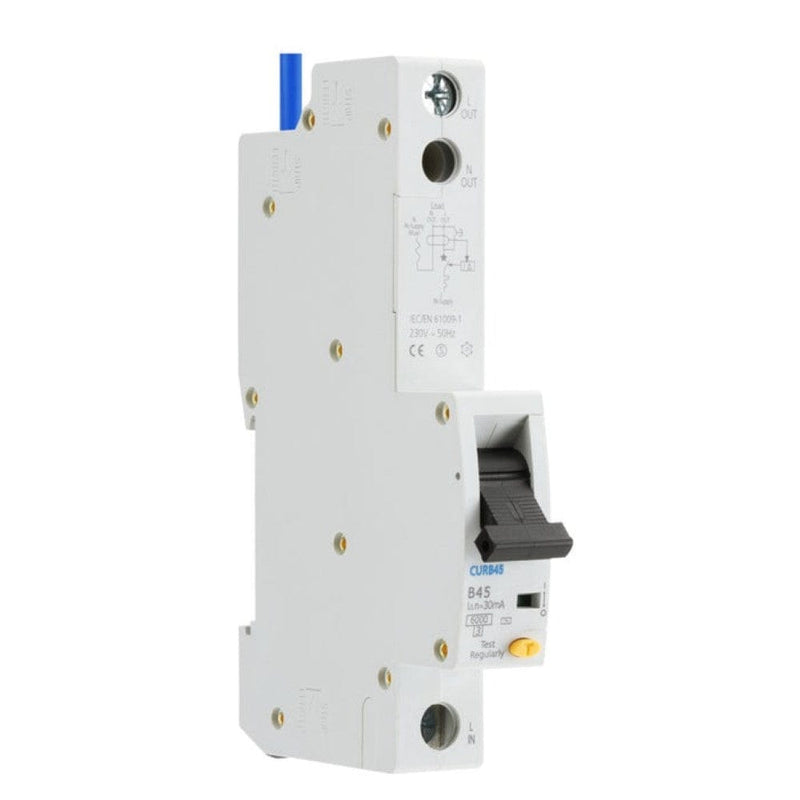

BG RCBO Type AC Tall B Curve 45A - CURB45

Product Overview

BG RCBO Type AC Tall B Curve 45A - CURB45

This BG range of single module RCBOs are a combination of B curve MCB and an RCD. This provides overload and short circuit protection as well as earth fault current protection in one device. The combination of MCB and RCD allows earth fault protection of a single circuit and helps reduce nuisance tripping of other circuits. This means that it would avoid unnecessary inconvenience and improves safety in the home. For example, the lighting circuit would remain on whilst a problem with another circuit is disconnected. All RCBOs in the range have a positive contact status indicator, i.e. when green window is visible this indicates that there is a 4mm contact gap.

Product Overview:

• Standard (s): EN/IEC 61009-1
• Max Current Rating: 45, 50, 55 Amp
• Breaking Capacity: 6000A
• Operating Voltage: 230V AC 50Hz
• RCD Type: Type AC, Type A
• Rated Tripping Current: 30mA
• Number of Poles: 1P + N (1 Module)
• IP Rating: IP20
• Installation: On 35mm DIN Rail
• Size: 17.8mm Width
• Endurance Operations: Electrical 10,000, Mechanical 20,000

Downloads

Download BG CURB45 Datasheet

Specification

Collection Name	Circuit Protection
MPN	CURB45
Pole	1
Voltage	230 V
Wired	No
Depth	76 mm
Height	124 mm
Width	18 mm
