Click Elucian 10 Way Dual RCD Split Load 16-Module Consumer Unit - CUEB16MSRCD10B

Product Overview

Click Elucian 10 Way Dual RCD Split Load 16-Module Consumer Unit - CUEB16MSRCD10B

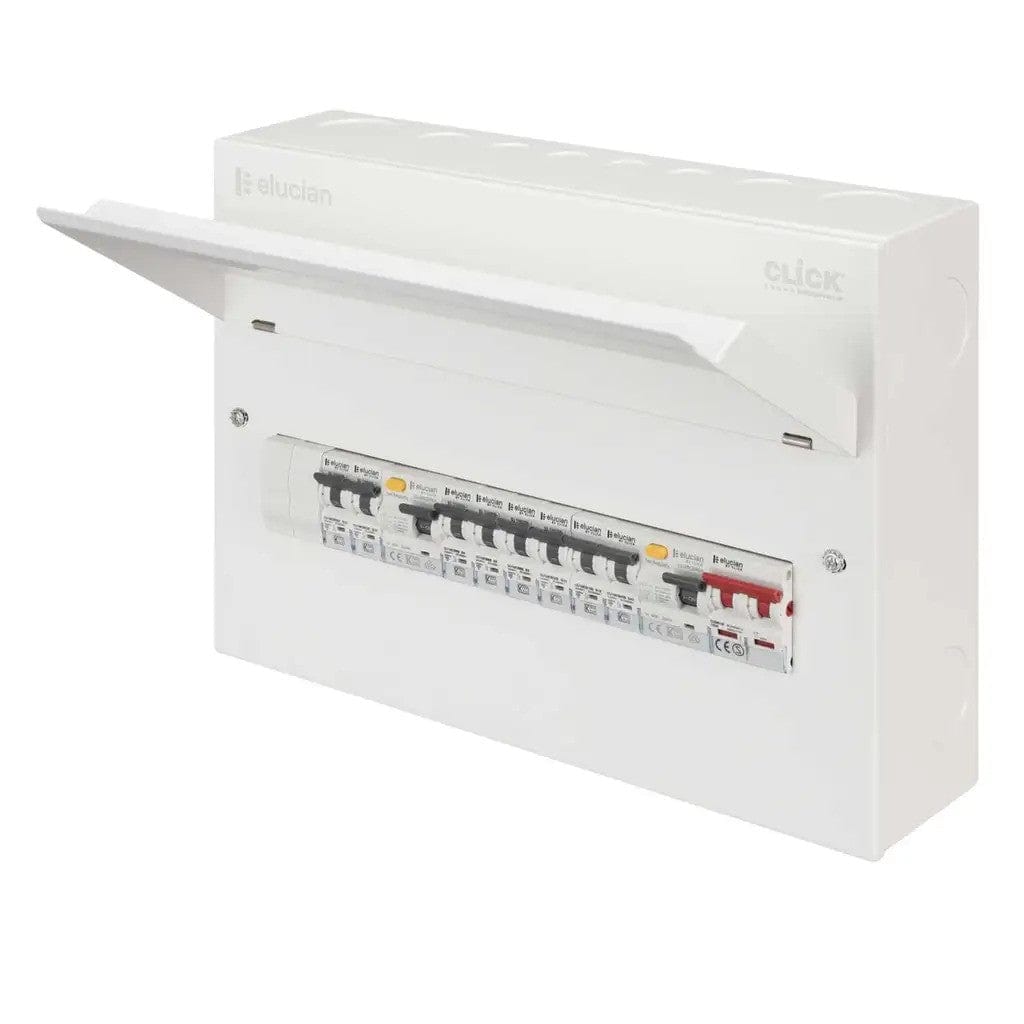

This Click Elucian consumer unit is suitable for medium to large properties offering 10 outgoing ways for customised configuration with 16 module spaces. The metal unit has a compact design and variable knockout sizes and is complete with a top hinged door. The 2 RCDs (residual current devices) provided are a safety feature to prevent fatal electric shocks when contact is made with something live, as well as providing some protection against electrical fires. The pre-installed tail clamp is designed to mechanically secure incoming tails to the fuse box.

The Elucian consumer unit is compliant with UK wiring regulations and meets the BS EN 61439-3, BS EN 60947-3 and BS EN 61008-1 standards.

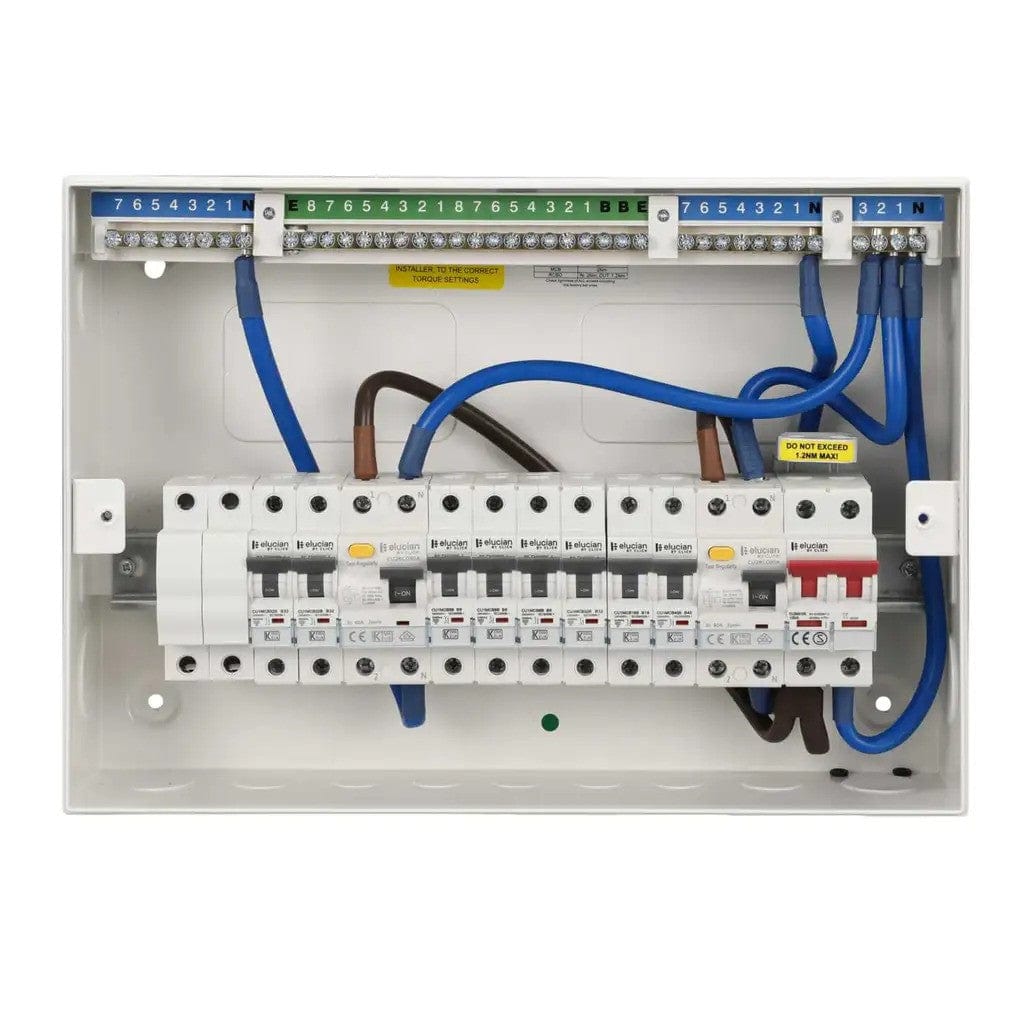

MCB's supplied are 3 x 6A B curve, 3 x 32A B Curve, 1 x 16A B Curve and 1 x 40amp B Curve.

Product Overview:

• Metal consumer unit
• Current rating: 100A
• Incoming device: 100A isolator
• Number of modules: 16
• Number of outgoing ways: 10
• Free ways: 10 [5+5]
• Rcd rating: 80A
• Rcd type: A
• Voltage rating: 230V
• Variable knockout sizes
• Dimensions: (H) 260mm x (W) 330mm x (D) 115mm
• Mounting: Surface
• Door type: Top hinged
• Tripping sensitivity: 30mA

Downloads

Download CUEB16MSRCD10B Datasheet

Specification

Domestic or Commercial	Domestic
IP Rating	IP20
Mounting	Surface
MPN	CUEB16MSRCD10B
Number Of Ways	10
Old GTIN	5056313214769
Operating Temperature Minimum	-5 °C
Rated Trip Current	30 mA
Depth	115 mm
Height	260 mm
Weight	5.7 kg
Width	330 mm
