Product Overview

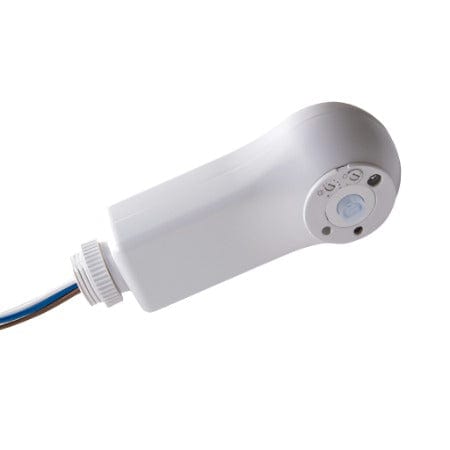

The Danlers 5m Batten Mounted PIR Occupancy Switch in white (BMPIR5M) offers an efficient and stylish solution for automated lighting control in various commercial environments such as factories, warehouses, and schools. Designed for straightforward installation on lighting battens, this switch features an IP53 rated enclosure for enhanced durability. With a detection range of up to 5 meters, it utilizes a photocell to adjust lighting based on ambient light levels, allowing users to set the threshold within 100 to 3000 lux. Additionally, the adjustable inactivity timeout ensures energy savings, while the real-time photocell status indicator provides clear visual feedback on its operation.

Specifications:
Detection range: up to 5m
Detection angle: 100°
Time lag range: 10 seconds to 40 minutes
Photocell range: 30 lux to 1000 lux, and inactive

Loading:
10 amps (2500W) resistive loads and tungsten
6 amps (1500W) fluorescent (switch start) / mains halogen lamps (recommended with integral safety fuse)
3 amps (750W) electronic or wire wound transformers
2 amps (500W) CFL, 2D lamps, LED Drivers and LED lamps and fittings

Downloads

Download danlers-bmpir5m

Specification

Depth	120mm
Height	36mm
Width	50mm
