Product Overview

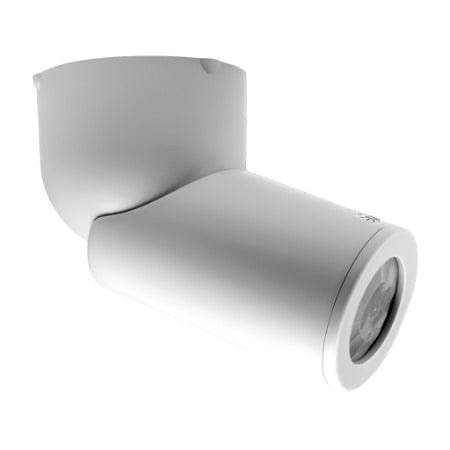

Introducing the Danlers 6A Ceiling PIR Occupancy Switch White (CEDR6P) – designed to give a directional view of the area to be monitored. It offers a 120° detection angle and can be rotated and lowered to a 45° angle.
This switch can be plugged into a ceiling mounted socket, which is sold separately (SKU: CESO), and that can be then mounted on a BESA box.

Directional sensing:
The capability of a device to detect motion or changes within a specific area. This technology allows occupancy switches like the Danlers 6A Ceiling PIR to focus their detection on a designated zone, ensuring accurate monitoring and responsiveness.

Energy efficiency:
Thanks to the PIR technology, the switch is designed to detect occupancy and automatically turn lights on and off, reducing energy consumption and lowering electricity bills.

Specifications:
·   Detection angle: 120°
·   Time lag range: 10 seconds to 40 minutes
·   Photocell range: 30 to 1000 lux, and inactive


Loading:
o   Up to 6 amps (1500W) of resistive loads
o   Up to 6 amps (1500W) of fluorescent loads
o   Up to 3 amps (750W) of electronic and wire wound transformer loads
o   Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings
o   Up to 1 amp (250W) of fans

Downloads

Download danlers-cedr6p

Specification

Battery Backup	Yes
Cable Length	2m
Current Amps	6A
Detectors Per Zone	120
Domestic or Commercial	Domestic, Commercial
Frequency	50Hz
Material	Fire Resistant Polycarbonate
Motion Detection	Yes
Mounting	Ceiling
PIR Fitted	Yes
power consumption	1500W
Sensor	PIR Motion Sensor
Type Of Switch Socket	PIR
Voltage	230V
Wattage	1500W
Height	64mm
Length	102mm
