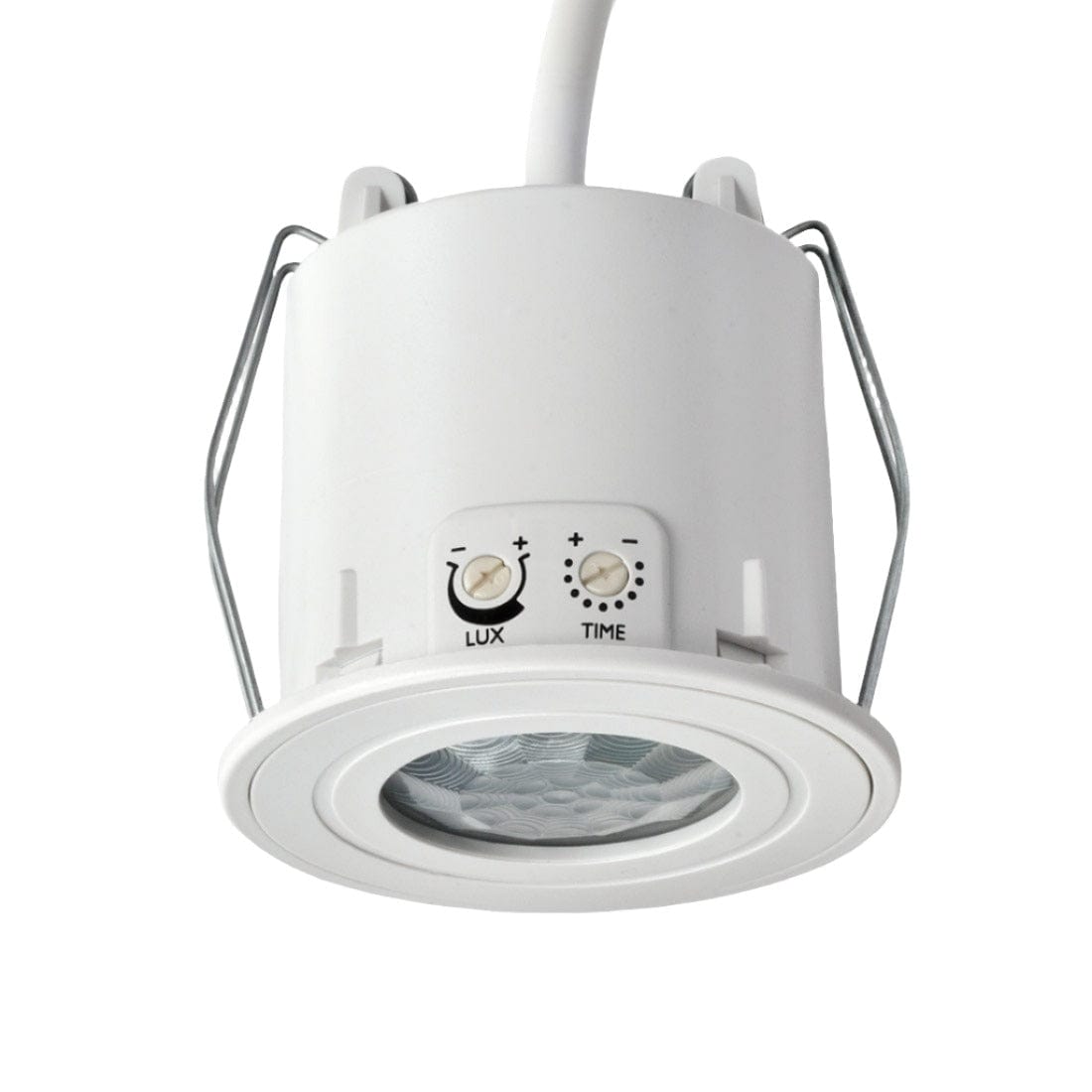

Danlers Ceiling Flush PIR 10 AMPS - CEFLPIR10A

Product Overview

Introducing the Danlers 10A Rated Ceiling Flush Mounted PIR Occupancy Switch (CEFLPIR10A) – a cutting-edge device offering a discreet and flush-mounted solution for automated lighting control.

Includes passive infrared technology to detect motion, illuminating your surroundings only when needed. The seamless integration with your ceiling provides a sleek and unobtrusive appearance, maintaining the aesthetic integrity of your space.

Energy efficiency:
Thanks to the PIR technology, the switch is designed to detect occupancy and automatically turn lights on and off, reducing energy consumption and lowering electricity bills.

Discreet ceiling flush mount:
The sleek and unobtrusive design of the ceiling flush mount does not only provide a modern aesthetic, but also ensures that the switch seamlessly integrates into the ceiling, making it a discreet and space-saving solution.

Specifications:
• Detection zone: 360°
• Time lag range: 10 seconds to 40 minutes in 9 steps
• Photocell range: 30 to 1000x, and inactive

Loading:
o Up to 10 amps (2500W) of resistive loads
o Up to 10 amps (2500W) of fluorescent loads
o Up to 3 amps (750W) of electronic and wire wound transformer loads
o Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers, and LED lamps and fittings
o Up to 1 amp (250W) of fans

Downloads

Download danlers-ceflpir10a

Specification

Battery Backup	Yes
Cable Length	2 mm
Current Amps	10 A
Detectors Per Zone	360
Domestic or Commercial	Domestic, Commercial
Frequency	50 Hz
IP Rating	IP20
Material	Fire Resistant Polycarbonate
Motion Detection	Yes
Mounting	Ceiling
PIR Fitted	Yes
power consumption	2500 W
Sensor	PIR Motion Sensor
Type Of Switch Socket	PIR
Voltage	230 V
Wattage	2500 W
Depth	68 mm
Weight	0.29 kg
