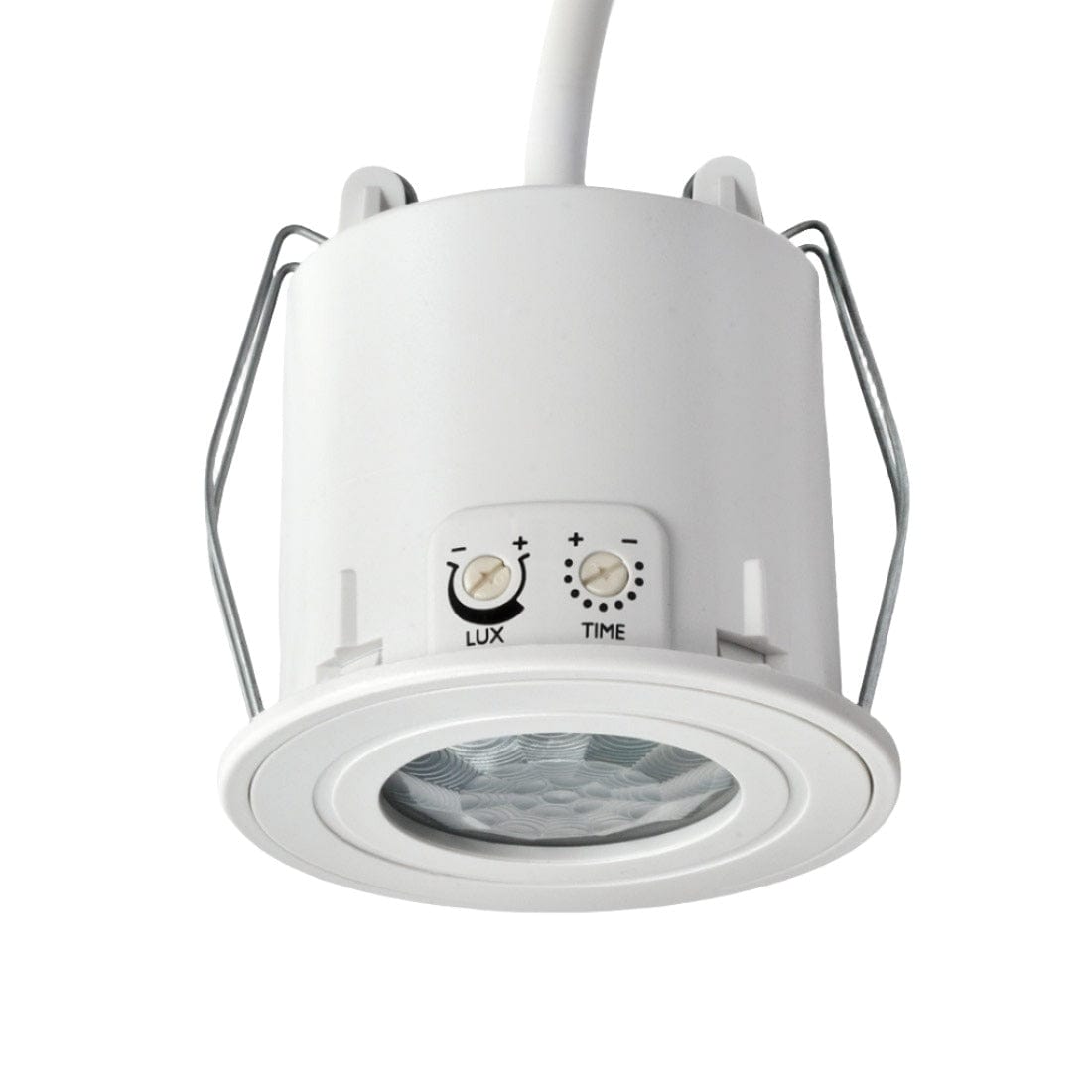

Danlers Ceiling Flush PIR Occupancy Switch - CEFLPIR

Product Overview

Introducing the Danlers Ceiling Flush Mounted PIR Occupancy Switch (CEFLPIR) – a cutting-edge device offering a discreet and flush-mounted solution for automated lighting control.

Includes passive infrared technology to detect motion, illuminating your surroundings only when needed. The seamless integration with your ceiling provides a sleek and unobtrusive appearance, maintaining the aesthetic integrity of your space.

Energy efficiency:
Thanks to the PIR technology, the switch is designed to detect occupancy and automatically turn lights on and off, reducing energy consumption and lowering electricity bills.

Discreet ceiling flush mount:
The sleek and unobtrusive design of the ceiling flush mount does not only provide a modern aesthetic, but also ensures that the switch seamlessly integrates into the ceiling, making it a discreet and space-saving solution.

Specifications:
• Detection range: 360degrees 5M at 2.4M high
• Photocell range: 30 to 1000x, and inactive
• Time lag range: 10 seconds to 40 minutes
• Material: Polycarbonate
• Voltage: 230V
• Requires 63 or 64mm (2.5") diameter hole

Loading:
o Up to 6 amps (1500W) of resistive loads
o Up to 6 amps (1500W) of fluorescent loads
o Up to 3 amps (750W) of electronic and wire wound transformer loads
o Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings
o Up to 1 amp (250W) of fan

Short Description



Downloads

Download danlers-ceflpir

Specification

Battery Backup	Yes
Cable Length	2 mm
Current Amps	6 A
Detectors Per Zone	360
Domestic or Commercial	Domestic, Commercial
Frequency	50 Hz
IP Rating	IP20
Material	Fire Resistant Polycarbonate
Motion Detection	Yes
Mounting	Ceiling
PIR Fitted	Yes
power consumption	1500 W
Sensor	PIR Motion Sensor
Type Of Switch Socket	PIR
Voltage	230 V
Wattage	1500 W
Depth	72 mm
Height	68 mm
Weight	0.25 kg
Width	72 mm
