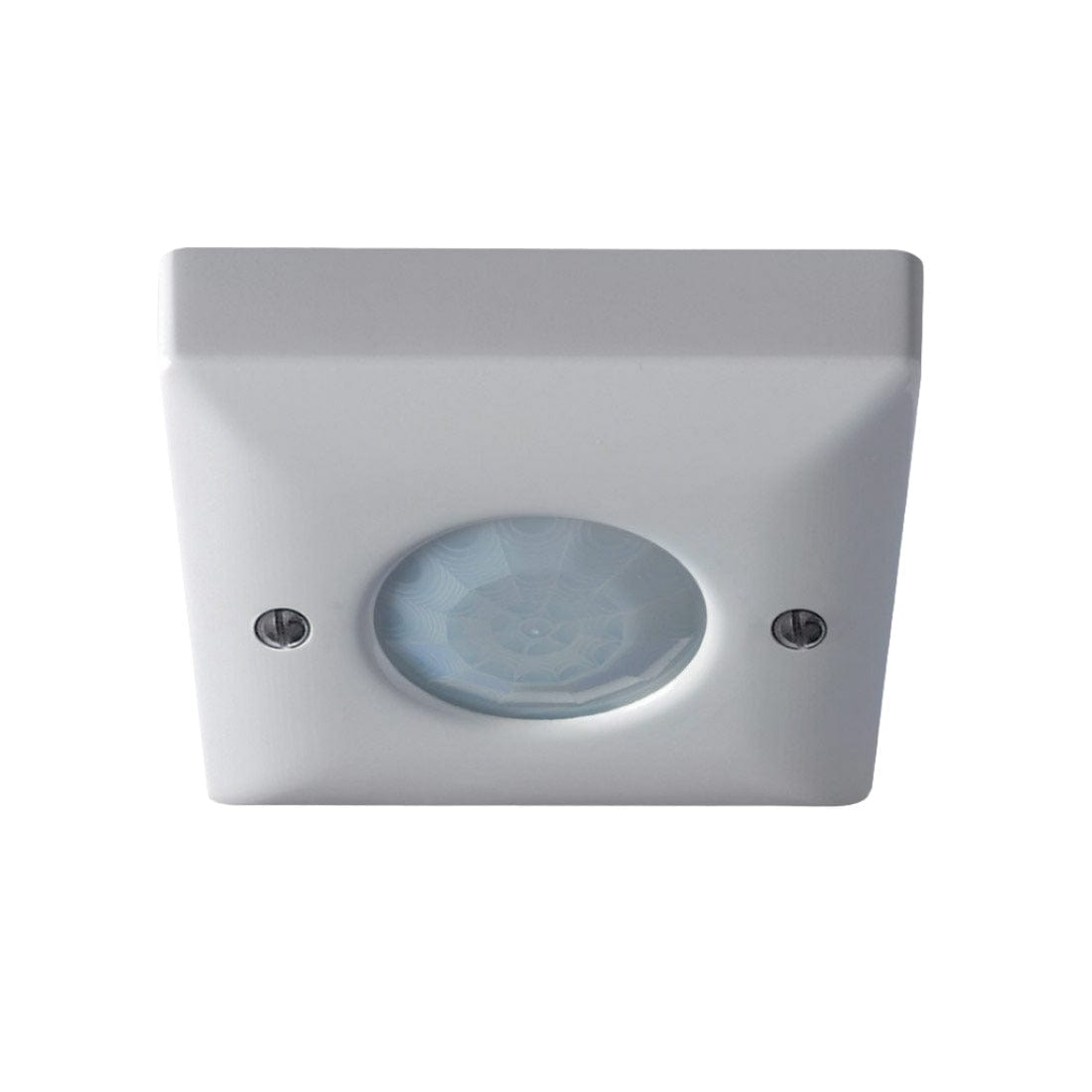

Danlers Ceiling Surface PIR Occupancy Switch - CESFPIR

Product Overview

Introducing the Danlers Ceiling Surface Mounted PIR Occupancy Switch White (CESFPIR) – a hard wired switch which can be mounted on a square pattress box. They are ideal for solid ceilings where automated lighting control is required. Includes passive infrared technology to detect motion, illuminating your surroundings only when needed.

Energy efficiency:
Thanks to the PIR technology, the switch is designed to detect occupancy and automatically turn lights on and off, reducing energy consumption and lowering electricity bills.

Specifications:
·  Detection zone: 360° 5m at 2.4m high
·  Time lag range: 10 seconds to 40 minutes in 9 steps
·  Photocell range: 30 to 1000 lux, and inactive

Loading:
o   Up to 6 amps (1500W) of resistive loads
o   Up to 6 amps (1500W) of fluorescent loads
o   Up to 6 amps (1500W) of LED Drivers, and LED lamps and fittings
o   Up to 3 amps (750W) of electronic and wire wound transformer loads
o   Up to 2 amps (500W) of CFL, 2D lamps
o   Up to 1 amp (250W) of fans

Downloads

Download danlers-cesfpir

Specification

Battery Backup	Yes
Cable Length	2 mm
Current Amps	6 A
Detectors Per Zone	360
Domestic or Commercial	Domestic, Commercial
Frequency	50 Hz
IP Rating	IP20
Material	Fire Resistant Polycarbonate
Motion Detection	Yes
Mounting	Ceiling
PIR Fitted	Yes
power consumption	1500 W
Sensor	PIR Motion Sensor
Type Of Switch Socket	PIR
Voltage	230 V
Wattage	1500 W
Depth	86 mm
Height	25 mm
Weight	0.98 kg
Width	86 mm
