Danlers Ceiling/Surface PIR Occupancy Switch IP66 - CESFPIRIP66

Product Overview

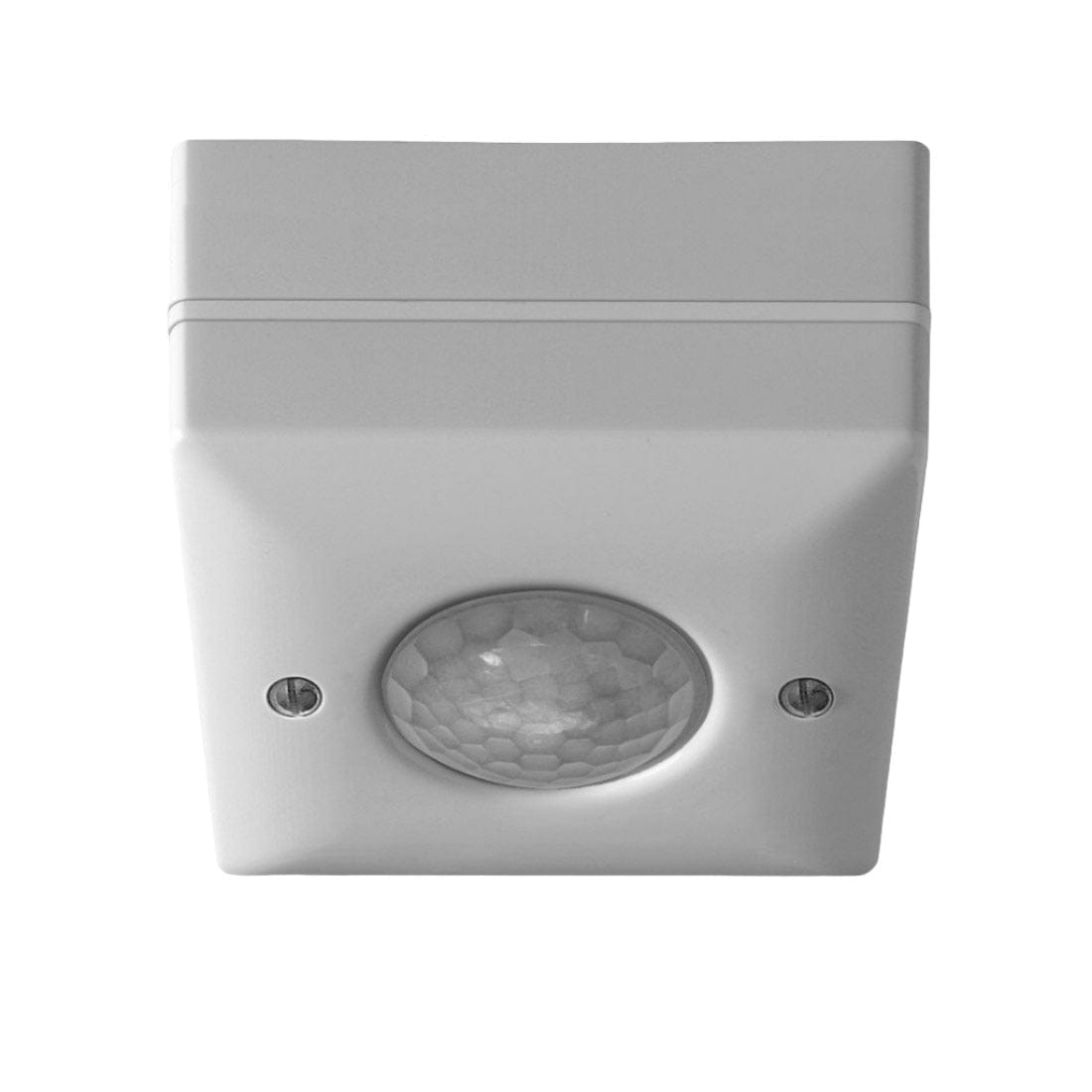

Introducing the Danlers IP66 Ceiling Surface Mounted PIR Occupancy Switch White (CESFPIRIP66 ) – a switch which is ideal for solid ceilings where automated lighting control is required.

IP66:
The IP66 rating indicates that the device is fully dust-tight and can endure powerful water jets from any direction. This level of protection makes the Danlers CESFPIRIP66 switch ideal for bathrooms, shower rooms, and other demanding environments, such as outdoor settings or moist areas, ensuring reliable performance and durability.

Energy efficiency:
Thanks to the PIR technology, the switch is designed to detect occupancy and automatically turn lights on and off, reducing energy consumption and lowering electricity bills.

Specifications:
·   Detection zone: 360° 5m at 2.4m high

Detection range:

·   up to 7m (5m strong detection and 2m secondary detection)
·   Time lag range: 10 seconds to 40 minutes in 9 steps
·   Photocell range: 30 to 1000 lux, and inactive

 Loading:
o   Up to 6 amps (1500W) of resistive loads
o   Up to 6 amps (1500W) of fluorescent loads
o   Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings
o   Up to 1 amp (250W) of fans

Downloads

Download danlers-cesfpirip66

Specification

Battery Backup	Yes
Cable Length	2 mm
Current Amps	6 A
Detectors Per Zone	360
Domestic or Commercial	Domestic, Commercial
Frequency	50 Hz
IP Rating	IP66
Material	Fire Resistant Polycarbonate
Motion Detection	Yes
Mounting	Ceiling
PIR Fitted	Yes
power consumption	1500 W
Sensor	PIR Motion Sensor
Type Of Switch Socket	PIR
Voltage	230 V
Wattage	1500 W
Depth	86 mm
Height	53 mm
Width	86 mm
