Danlers Directional Long Range PIR Switch with Plug - CEDR6PLR

Product Overview

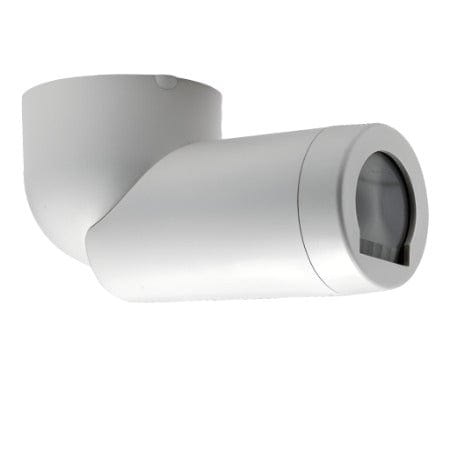

Introducing the Danlers 6A Ceiling PIR Occupancy Switch Long Range White (CEDR6PLR) – is the perfect solution for automatic lighting control in a variety of settings, from offices and conference rooms to hallways and storage areas. This long range version offers more flexibility by allowing for longer detection ranges. It is designed to give a narrow 25m detection range, with a 120° detection angle, and can be rotated and lowered to a 45° angle.
The CEDR6PLR has a built-in plug, suitable for the CESO ceiling socket (sold separately), which can then be mounted on a BESA box.

Long range detection:
The ability of a sensor to detect motion or occupancy over a larger area, typically extending several meters from the device. This feature is particularly useful in environments where wide coverage is needed, ensuring that even distant movements are registered and the lighting system responds accordingly.

Directional sensing:
The capability of a device to detect motion or changes within a specific area. This technology allows occupancy switches like the Danlers 6A Ceiling PIR to focus their detection on a designated zone, ensuring accurate monitoring and responsiveness.

Energy efficiency:
Thanks to the PIR technology, the switch is designed to detect occupancy and automatically turn lights on and off, reducing energy consumption and lowering electricity bills.

Specifications:
·   Detection angle: 120°
·   Rotated and lowered to a 45° angle
·   Time lag range: 10 seconds to 40 minutes in 9 steps
·   Photocell range: 30 to 1000 lux, and inactive

Loading:
o   Up to 6 amps (1500W) of resistive loads
o   Up to 6 amps (1500W) of fluorescent loads
o   Up to 3 amps (750W) of electronic and wire wound transformer loads
o   Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings
o   Up to 1 amp (250W) of fans

Downloads

Download danlers-cedr6plr

Specification

Angle Of Detection	6 °
Battery Backup	Yes
Detection Range Maximum	14 m
Frequency	50 Hz
IP Rating	IP20
Surge Protected	Yes
Diameter	60 mm
Height	64 mm
Length	115 mm
