Product Overview

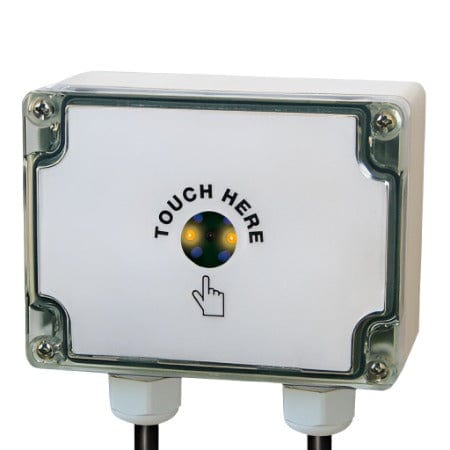

The Danlers 16A External 20 Min Time Lag Switch (EXTLSW16A) is an ideal solution for energy-efficient control of exterior heaters and lighting as well as damp areas indoors. This robust switch is designed with a touch-sensitive area that activates the connected load with a simple touch, and it automatically turns off after a user-adjustable time lag ranging from 2 to 20 minutes. Featuring an illuminated touch area for ease of use in low-light conditions, the switch is encased in a tough, hard-wearing polycarbonate moulding with an IP66 rating, ensuring durability against harsh weather and moisture. With a maximum load capacity of 16A (4000W) for quartz heaters, this time lag switch not only enhances convenience but also promotes energy savings in various settings. Additionally, during the final 20 seconds of the time lag, the illuminating LEDs flash as a visual cue, ensuring users are aware when the load is about to switch off.

Specifications:
Ideal for energy saving control of exterior heaters and exterior lighting
Suitable for damp indoor areas
IP66 rated
Time lag range: 2 to 20min

Loading:
Up to 16 amps (4000W) of quartz heaters
Up to 12 amps (3000W) of fluorescent loads
Up to 2 amps (500W) of most metal halide lamps

Downloads

Download danlers-extlsw16a

Specification

Depth	120mm
Height	60mm
Width	90mm
