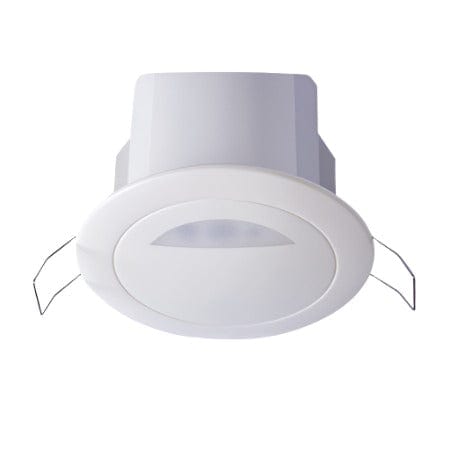

Danlers Microwave Flush Mounted Detector - MWCEFL

Product Overview

The MWCEFL microwave presence detector operates by emitting low power microwave signals that travel through the environment. When these signals encounter a moving object, such as a person, they bounce back to the sensor, confirming movement within its detection range. Upon detecting this movement, the device automatically activates the connected lighting, heating, or air conditioning loads. The sensitivity of the sensor can be adjusted using internal settings, allowing users to customize the detection range and the delay time before the load switches off, ensuring energy efficiency while maintaining comfort.

Specifications:
Detection range: max 12m at 6m high
Detection angle: 30° - 150°
Time lag range: 5s, 30s, 1min, 5min, 10min, 30min
Photocell range: 2 to 50 lux, and inactive
Operating temperature: -20°C to 60°C

Loading:
Switches up to 1200W resistive load
Switches up to 400W of most other types of load including LED

Downloads

Download danlers-mwcefl

Specification

Angle Of Detection	150 °
Battery Backup	Yes
Detection Range Maximum	12 m
Detection Range Minimum	6 m
Frequency	50 Hz
IP Rating	IP20
Motion Detection	Yes
Operating Temperature Maximum	60 °C
Operating Temperature Minimum	-20 °C
Sensor	Microwave
Surge Protected	Yes
Depth	85 mm
Height	65 mm
Width	85 mm
