Product Overview

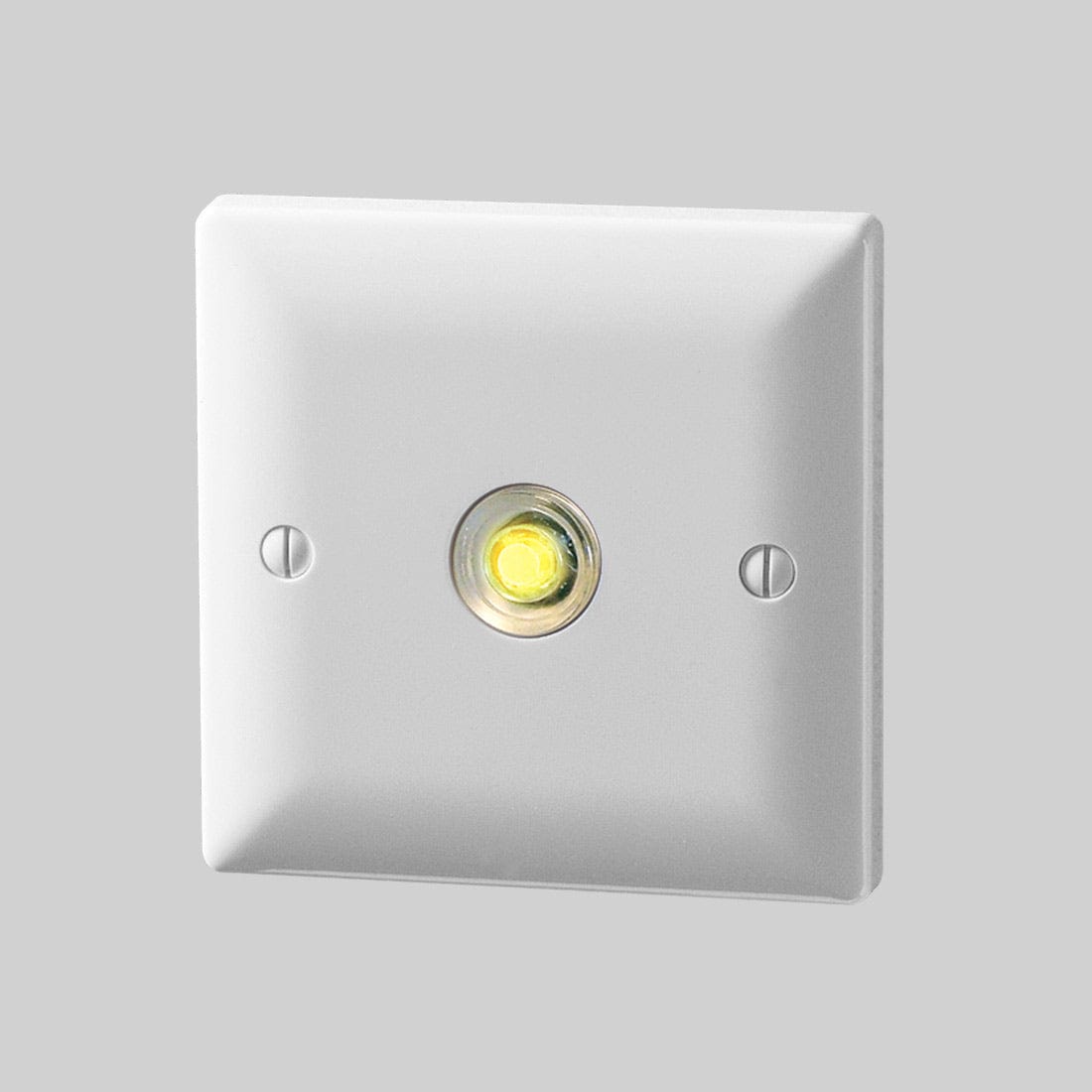

The Danlers Time Lag Switch 20 Min, 3 Wire, Illuminated, White (TLSWA20ILM) is designed for efficient and economical control of lighting, requiring a neutral wire for operation. With a time lag setting adjustable between 2 to 20 minutes, this switch allows users to tailor the duration that the load remains active. Ideal for various applications, the TLSWA20ILM can be integrated into existing systems by connecting in parallel with other devices or via compatible Danlers slave switches for added flexibility. This product combines functionality with a sleek white finish, seamlessly fitting into modern interiors while offering reliable performance.
Additionally, the product features an illuminated push button, allowing for easy location in the dark, ensuring convenience and safety for users.

Specifications:
Time lag range: from 2 to 20min

Loading:
Up to 6 amps (1500W) of resistive, transformer or fluorescent lighting loads
Up to 2 amps (500W) of CFL, LED Drivers and LED lamps and fittings
Up to 1 amp (250W) of fans

Downloads

Download danlers-tlswa20ilm

Specification

Battery Backup	Yes
Frequency	50Hz
Surge Protected	Yes
Depth	86mm
Height	12mm
Width	86mm
