Product Overview

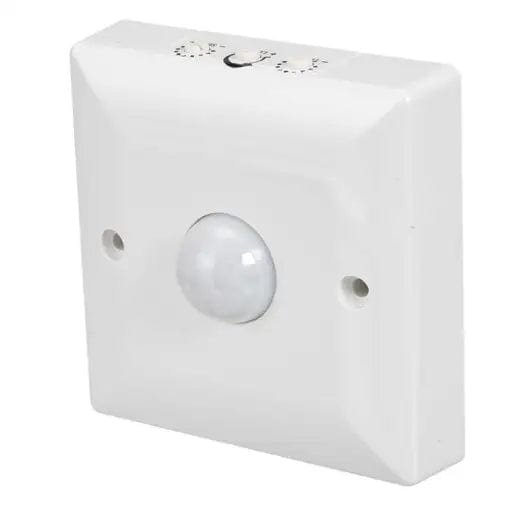

The Danlers Wall or Ceiling Mounted PIR Occupancy Switch White  (WACEPIR) - an occupancy switch is a versatile and efficient solution for automatic lighting control, ideal for various settings such as stairwells, corridors, and toilet lobbies. Designed for wall or ceiling installation, it fits into standard plaster depth (16mm) wall boxes or ceiling mounted square pattress boxes and requires a neutral wire for operation.

Specifications:
·  Detection angle: 120°
·  Time lag range: 10 seconds to 40 minutes in 9 steps
·  Photocell range: 30 to 1000 lux, and inactive

Loading:
o   Up to 6 amps (1500W) of resistive loads
o   Up to 6 amps (1500W) of fluorescent loads
o   Up to 3 amps (750W) of electronic and wire wound transformer loads
o   Up to 2 amps (500W) of CFL, 2D lamps, LED Drivers and LED lamps and fittings
o   Up to 1 amp (250W) of fans

Downloads

Download danlers-wacepir

Specification

Angle Of Detection	120°
Battery Backup	Yes
Detection Range Maximum	10m
Mounting	Wall
Height	22mm
Length	86mm
Weight	0.13kg
Width	86mm
