Product Overview

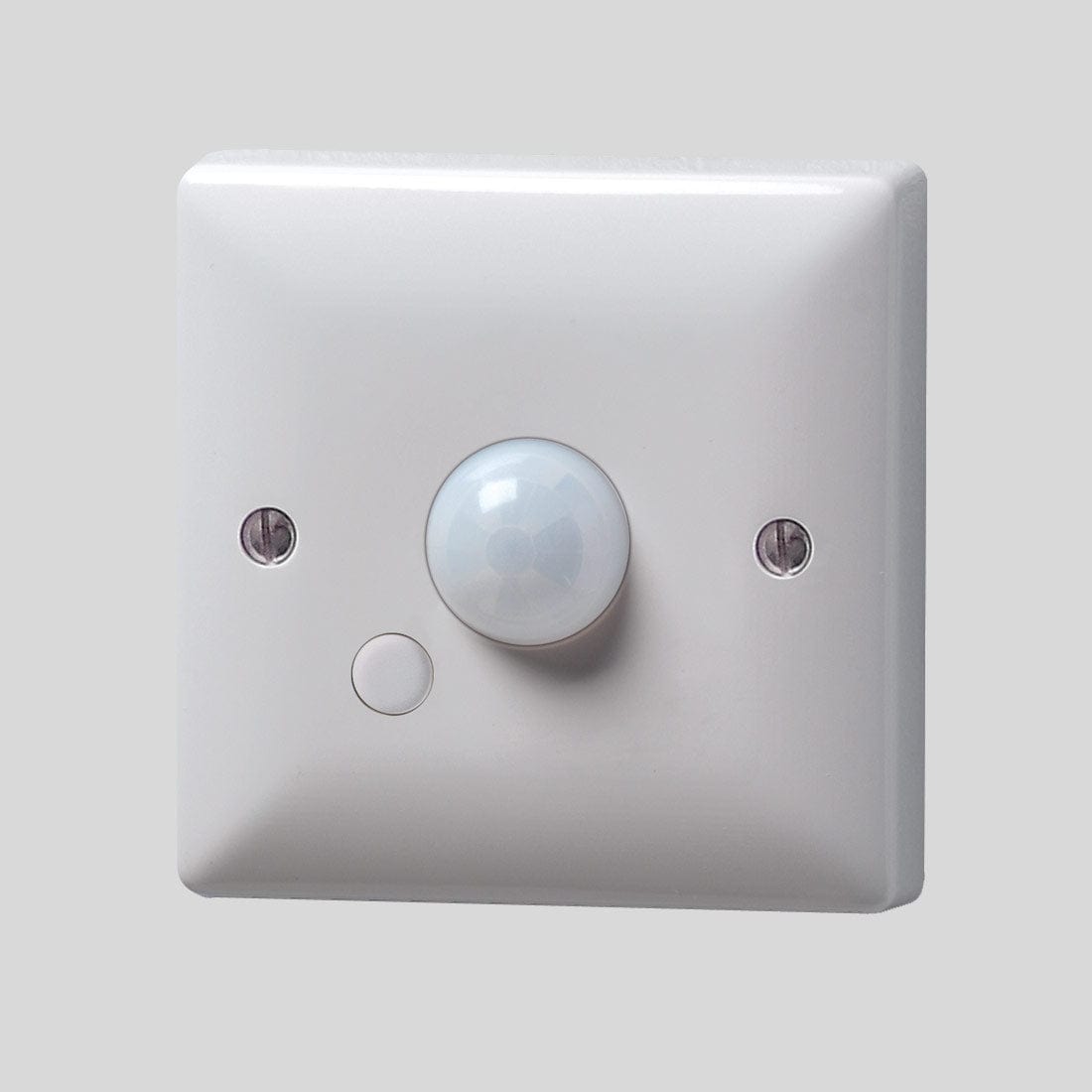

The Danlers Wall Mounted PIR Occupancy Switch (WAPIR) is designed for seamless integration into wall-mounted applications, offering a practical solution for controlling lighting without the need for a neutral wire. Optimised for use in environments where lights are operational for less than 12 hours daily, the WAPIR features a rechargeable battery that recharges from the permanent live supply, ensuring reliable performance. With a manual override button for added flexibility during specific events, such as presentations, and a load capacitor to support small loads, this device is an efficient choice for modern lighting control needs. Its sleek white design allows it to blend effortlessly into any room, making it both functional and aesthetically pleasing.

Override button:
The WAPIR features a push button on the front plate that allows users to toggle between ‘override off’ and ‘automatic mode’. A short press activates the override OFF mode, indicated by a slowly pulsing LED, which can be deactivated or reactivated by holding the button for 10 seconds.

Specifications:
·  Supplied with a load capacitor to augment small loads
·  Fits into a plaster depth wall box
·  Should only be used in applications where the lights would not be on for more than 12 hours per    day to allow its rechargeable battery enough time to recharge itself from the mains supply
·   Detection angle: 120°
·   Time lag range: 10 seconds to 40 minutes in 9 steps
·   Photocell range: 30 to 1000 lux, and inactive

Loading:
o   Up to 6 amps (1500W) of resistive loads
o   Up to 6 amps (1500W) of fluorescent loads
o   Up to 6 amps (1500W) of electronic and wire wound transformer loads
o   Up to 6 amps (1500W) of LED lamps and drivers
o   Up to 1 amp (250W) of fans

Downloads

Download danlers-wapir

Specification

Angle Of Detection	120°
Back Box Depth Minimum	16mm
Battery Backup	Yes
Detection Range Maximum	10m
Detection Range Minimum	5m
Frequency	50Hz
Wattage	20W
Height	24mm
Length	86mm
Width	86mm
