Product Overview

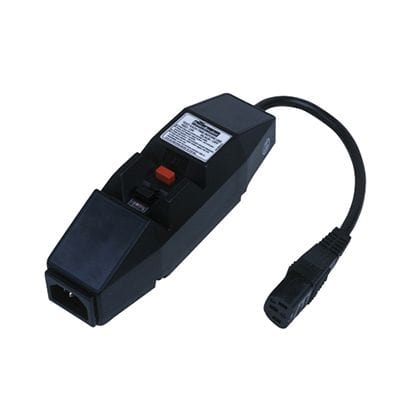

Greenbrook 10A RCD In-Line PowerBreaker 240V - J63-X

The Greenbrook J63-X is a two pole in-line portable RCD for indoor use only. It has a built in IEC connectors for easy fit and quick release from the appliance. It is ideal for use in offcies and commercial environments.

The incoming end of the in-line RCD has built in IEC connector in the housing and must be connected to the mains supply. The outgoing supply has 0.3 metre length of cable, which is fitted with an IEC plug.

Product Overview:

• Finish Colour: Black
• Voltage: 240V
• Rated Trip Current: 30mA
• Weight: 203g
• Height: 161.5mm
• Width: 50.80mm
• Depth: 47mm
• Frequency: 50/60Hz
• Max Operating Current: 10A
• IP Rating: IP20
• Cable Type: IEC connector in Housing
• Typical Trip Speed: <40mS
• Material: Polycarbonate

Downloads

Download J63-X-Datasheet

Specification

Applicable Area	Commercial
Consumer Unit Device Type	RCD
Current Amps	10A
Domestic or Commercial	Commercial, Office
Finish Or Colour	Black
IP Rating	IP20
Material	Polycarbonate
Old GTIN	5012739607783
RCD Protected	Yes
Voltage	240V
Depth	47mm
Height	162mm
Weight	0.02kg
Width	51mm
