Greenbrook Lighting 3W LED Emergency Bulkhead M/NM with Legends - ELLEDBULK

Product Overview

Greenbrook Lighting 3W LED Emergency Bulkhead M/NM with Legends - ELLEDBULK

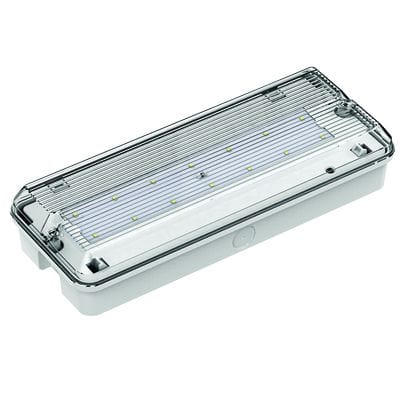

The Greenbrook ELLEDBULK is a 3W LED emergency bulkhead. The light fixture comes complete with vinyl adhesive legends (Down Arrow, Up Arrow, Right Arrow and Left Arrow). It has a white polycarbonate body with a clear diffuser. Being IP65 rated, the unit it suitable for outdoor use. It is link changeable to maintained and non-maintained, with maintained offering a 150 lumen output and non-maintained 100lm. It has a charge time of 24 hours and will last for 3 hours in the case of a power outage.

Product Overview:

• IP Rating: IP65
• Lamp Type: LED
• Class Type: I
• Colour Temperature: 6500K
• Operating Temperature: 0°C to +40°C
• Applications: Indoor and Outdoor
• Total lumens: 150 Maintained, 100 Non-Maintained
• Max Wattage: 3W
• Weight: 485g
• Dimensions: H60 x W110 x D276mm
• Material: Polycarbonate

Downloads

Download ELLEDBULK-Datasheet

Specification

Colour Temperature	6500 K
Emergency Lighting	Yes
Fire Rated	Yes
Fitting Type	Bulkhead
Fixed Or Adjustable	Fixed
Frequency	50 Hz
IP Rating	IP65
Lumens	150
Mounting	Ceiling, Wall
Old GTIN	5012739645389
Operating Temperature Maximum	40 °C
Operating Temperature Minimum	0 °C
Technology Type	LED
Voltage	240 V
Wattage	3 W
Height	60 mm
Length	276 mm
Weight	4.85 kg
Width	110 mm
