Quick Find Code: CHOC30A-10
Order in the next 07:19:12
- Optional Screw or Cable Tie Fixing
- External Easy to Use Cable Clamps
- For Protection of Electrical Connections
- Will Pass Through a 50mm Diameter Hole
- Simple One Piece Snap Cover with Screw Fixings
Greenbrook Lighting Connector Box 30A (10 Pack) - CHOC30A-10
Quick Find Code: CHOC30A-10
Order in the next 07:19:12
- Optional Screw or Cable Tie Fixing
- External Easy to Use Cable Clamps
- For Protection of Electrical Connections
- Will Pass Through a 50mm Diameter Hole
- Simple One Piece Snap Cover with Screw Fixings
Product Overview

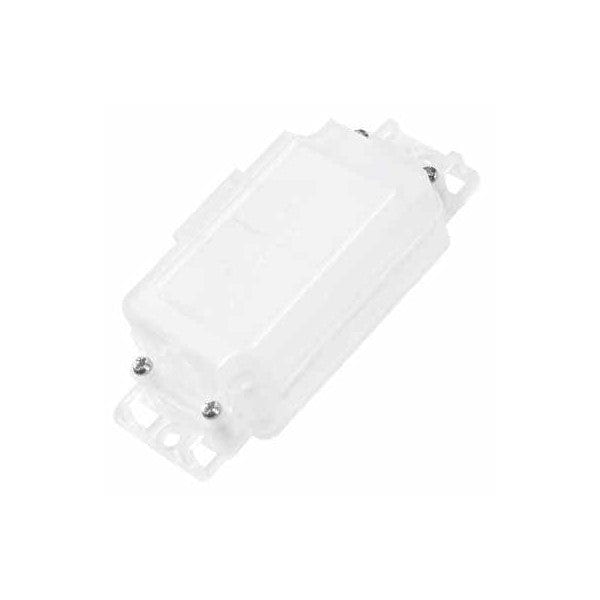

Greenbrook Lighting 30A Connector Box (10 Pack) - CHOC30A-10
This Greenbrook 30A 10 pack connector boxes are designed for the protection of electrical connections. Each unit features easy to use external cable clamps. It is constructed from natural polypropylene and is maintenance free and tamperproof. It has a simple one piece snap cover with screw fittings. The connector will pass through a 50mm diameter hole and offers optional screw or cable tie box fixing.
Product Overview:
- Rated Voltage: 250V
- Terminal Block Size: 20A
- Temperature Range: -5 to 60°C
- Weight: 28g
- Dimensions: H28 x W110 x D49mm
- Material: Natural Polypropylene
Number of terminals that can fit inside CHOC30A when located on peg:
Horizontal Positioning
- 2 Amp - 8 Terminals
- 5 Amp - 6 Terminals
- 15Amp - 4 Terminals
- 30Amp - 4 Terminals
Vertical Positioning
- 2 Amp - 4 Terminals
- 5 Amp - 4 Terminals
- 15Amp - 2 Terminals
- 30Amp - 2 Terminals
Specification
Old GTIN | 5012739626357 |
---|---|
Depth | 28 mm |
Length | 110 mm |
Width | 47 mm |
