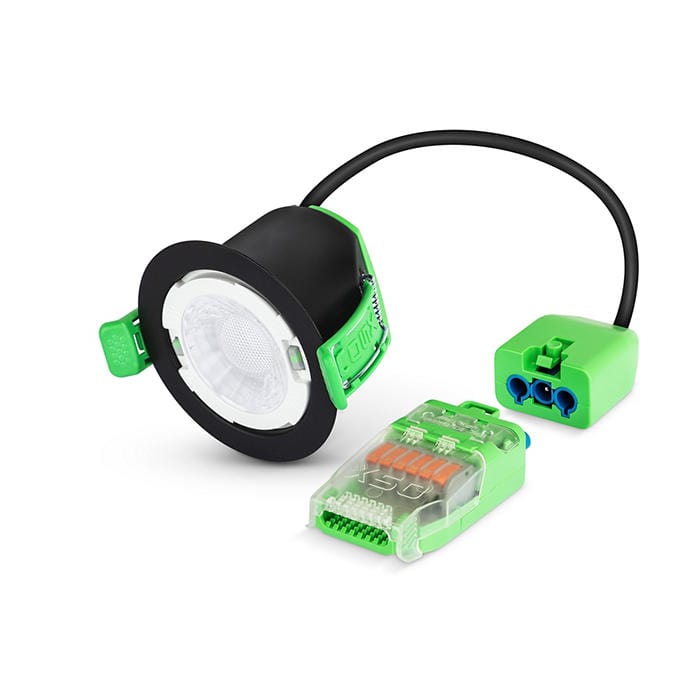

JCC X50 Fire rated downlight 3W/5W IP20 3000/4000/5700K 400/650 lm No Bezel - JC1101/NB

Product Overview

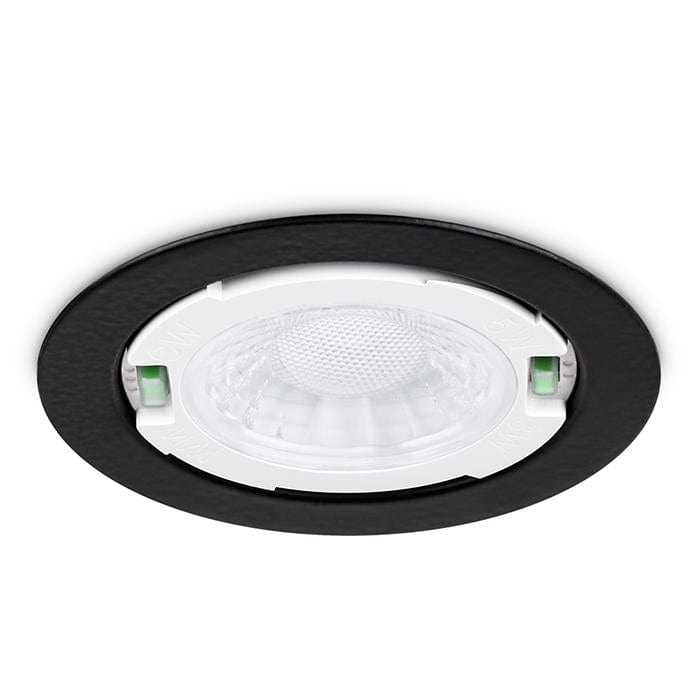

The JC1101/NB is a versatile and efficient fire-rated downlight designed for modern lighting needs. This downlight offers a no-bezel aesthetic design but is still compatible with bezels if preferred, providing a sleek and unobtrusive look that seamlessly integrates into any ceiling. With its selectable wattage and colour temperature, it allows for customization to suit various lighting preferences and environments.

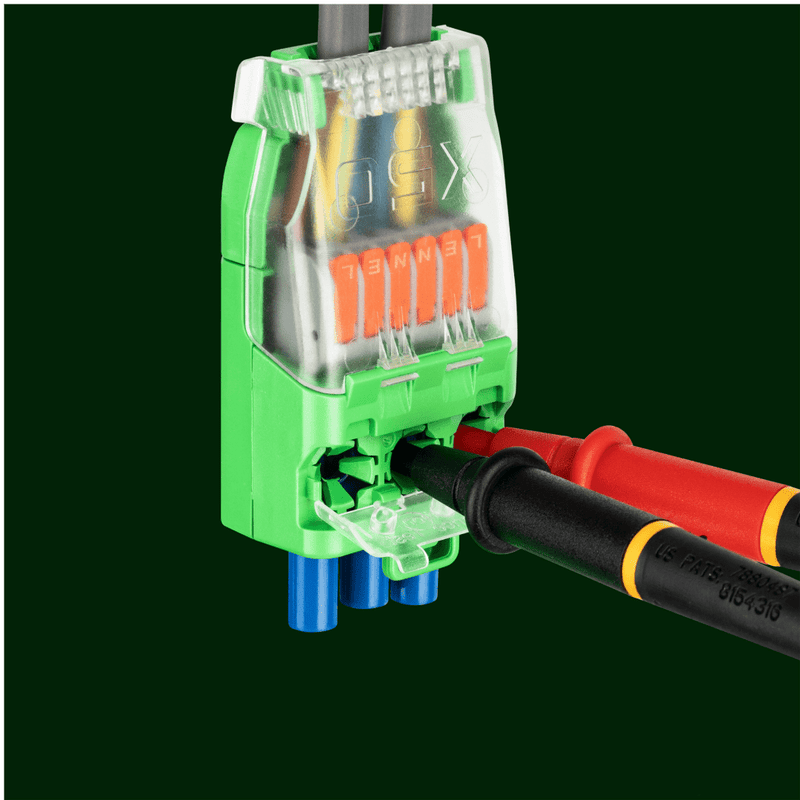

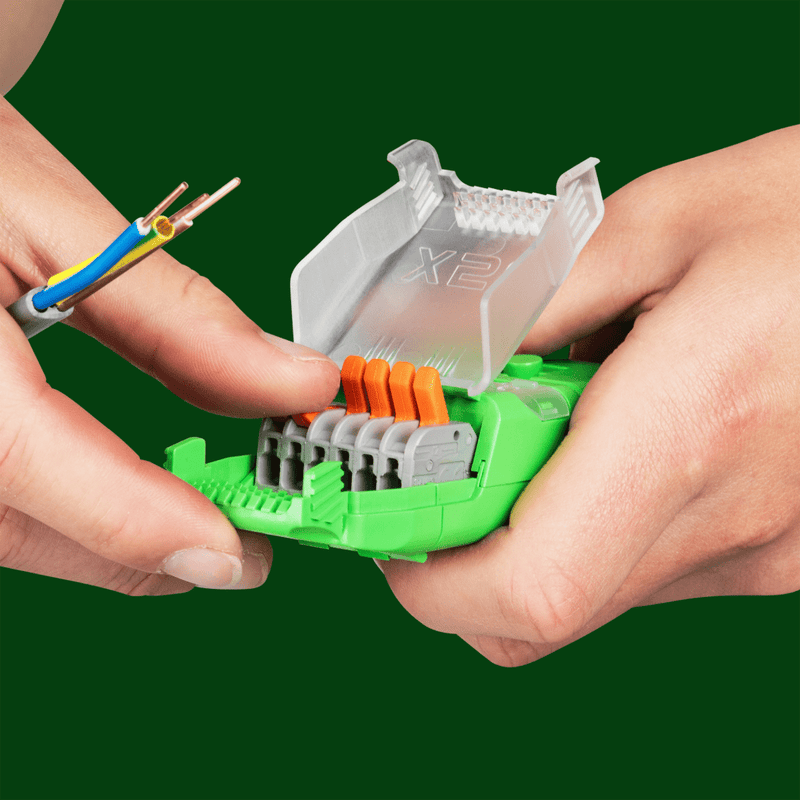

This downlight is equipped with advanced features such as a two-part first-fix connector and dedicated testing terminals, ensuring easy installation and maintenance. Its double-hinged terminal provides convenient access to terminal blocks, making it a practical choice for both residential and commercial applications. The JC1101/NB is tested for use in solid, I-joist, and steel open web joist ceilings, ensuring compatibility with a wide range of ceiling types.

In addition to its functional benefits, the JC1101/NB meets rigorous safety standards, including BS EN 60598:2015. It is IP65 rated, making it suitable for use in demanding environments. With its combination of flexibility, ease of installation, and safety, the JC1101/NB is an excellent choice for anyone looking to enhance their lighting solutions.

Downloads

Download jc1101nb-spec-sheet

Specification

Bezel Supplied	No
Colour Temperature	5700 K
Colour Temperature Minimum	3000 K
Cutout Diameter	70 mm
Dimmable	Triac Dimmable
Fire Rated	Yes
IP Rating	IP65
Lip Depth	3 mm
Luckins Code	405352285
Lumens	700
Material	Aluminium
Minimum Wattage	3.5 W
Operating Temperature Maximum	26 °C
Operating Temperature Minimum	0 °C
Recess Depth	50 mm
Wattage	5 W
Diameter	84 mm
Height	55 mm
Length	322 mm
