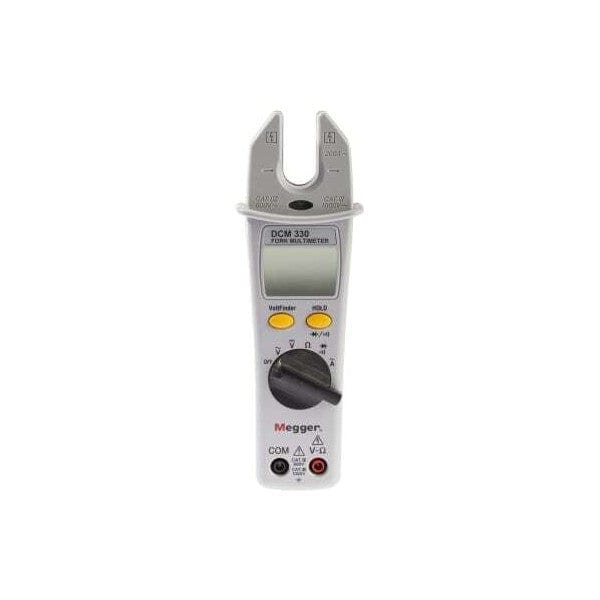

Megger DCM330 Fork Multimeter - 1000-219

Product Overview

Megger DCM330 Fork Multimeter - 1000-219

The Megger DCM330 combines a multi-meter and clamp meter into one versatile device. It can identify the presence of live AC voltages from 50V to 1000V at 50 to 500Hz. The open jaw design enables simple and fast measurements to be made on single conductors up to 16mm diameter. It provides average responding RMS values, and with the conductor(s) positioned centrally and squarely within the jaws, achieves readings of better than 3% accuracy.

Its tough body provides durability while stored in a tool box or pocket and is designed to withstand a drop of 1.2 on a hard floor with no damage. It is designed so that the user has a comfortable grip. It is a convenient, compact instrument that allows for measuring A.C currents flowing cables up to 200A. With A.C. and D.C. voltage measurements up to 1000V plus resistance measurements up to Mohms.

Product Overview:

• Auto Power Off
• Auto Ranging
• 3.5 Digit Display with Hold
• Compact Pocket-Sized Design
• CAT III 1000V and CAT IV 600 V
• 200A AC Open Jaw Current Measurement
• 0.1V to 1000V Auto-Ranging AC and DC Voltage Measurement
• 0.1 ohms to 20.00 Mohms Resistance Range
• Continuity Buzzer and Diode Check

Downloads

Download 1000-219-Datasheet

Specification

Old GTIN	5036175218365
