Product Overview

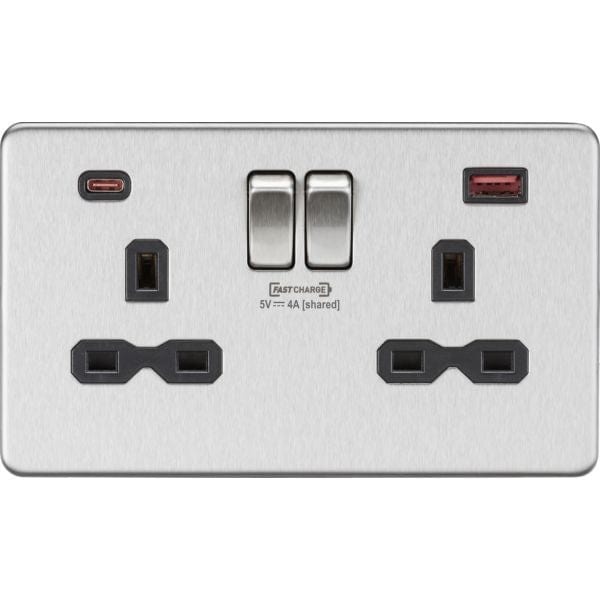

Suitable for the home, the SFR9909BC combines a standard switched socket with one Type A and one Type C port to reflect the growing presence of USB products in our day to day lives. It adds sleek style to the home with its brushed chrome finish and low profile (less than 5mm thick at the plate) and is manufactured from premium grade steel to ensure a long-lasting quality product. Features • 2 gang switched socket (13A) with Type A and C FASTCHARGE USB • Charging power: 5-12V DC FASTCHARGE Type-C (max 3A) / Type-A (max 2A) • Minimum back box depth: 25 - 35mm (depending on conditions) • Integrated gasket to prevent moisture transfer. • Manufactured from premium grade steel. • Switches voltage from standard 5V up to 12V (max 20W output) with QC2.0 compliant devices • Both ports can FASTCHARGE (not at the same time) • Manufactured to BS 1363-2 and EN 62368-1 • Dimensions (H x W x D): 87.5 x 147.5 x 4.3mm

Specification

Back Box Depth Minimum	35mm
Current Amps	13A
Finish Or Colour	Chrome
Gang	2
IP Rating	IP20
MPN	SFR9909BC
Old GTIN	5056270806755
Plate Colour	Decorative
Plate Depth	4mm
Type Of Switch Socket	USB Socket
Voltage	240V
Depth	148mm
Height	88mm
Weight	0.34kg
Width	148mm
