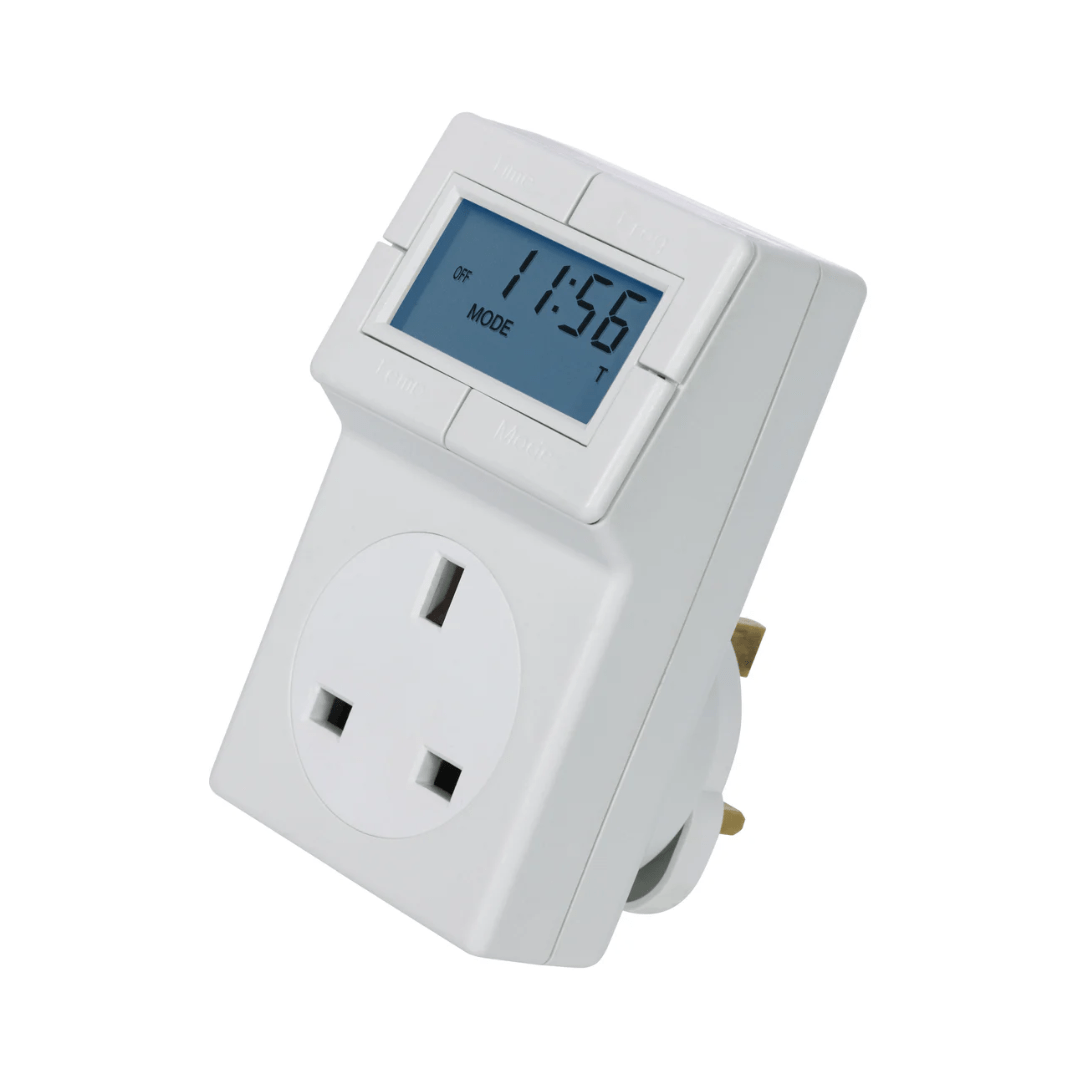

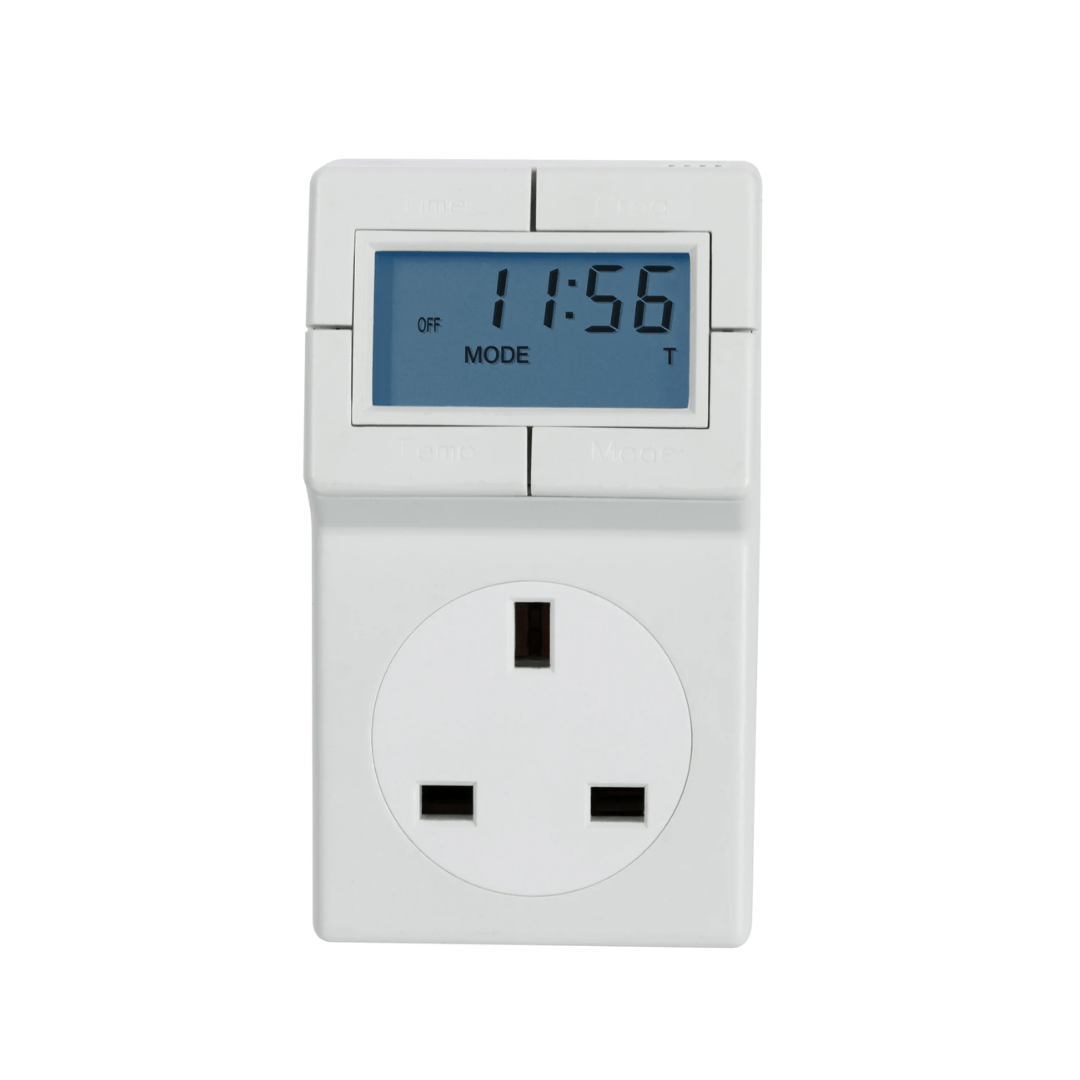

Timeguard Electronic Plug In Thermostat With 24 Hour Time Control - TRT05

Product Overview

The TRT05 is a plug-in electronic thermostat with an in-built 24 hour programmable timer. It has 3 programmable time periods and 4 operating modes including ON, OFF, timed and automatic.

The set temperature range is between 0° and 35°C, and is ideal for controlling radiant, convector and fan heaters as well as oil filled radiators.

Features:

• Plug-in, no wiring
• 3 ON/3 OFF easy-set programmable time periods repeated over 24 hours
• Integral temperature sensor with 0° – 35°C temperature range
• 1000 hours integral battery power reserve retains programmes and allows out of socket programming
• Large LCD information screen
• Reset button restores to factory set default programmes
• 13(2)A load rating, 3kW resistive, 400W filament, 2A inductive

Specifications:

• Operating Temperature: 0°C to +40°C
• Set Temperature: 0°C to 35°C
• Battery: 1000 Hours (Approx.)
• EC Directives: Conforms to Latest Directives
• Dimensions: Height: 102mm x Width: 58mm x Depth: 80mm

Specification

Current Amps	13 A
Maximum Set Temperature	35 °C
MPN	TRT05
Old GTIN	05012483012413
Operating Temperature Maximum	40 °C
Operating Temperature Minimum	0 °C
Remote Control	No
Voltage	230 V
Depth	80 mm
Height	102 mm
Width	57 mm
