- Lighting Connector Specifically for Wall Mounting and Ceiling Luminaires
Wago 2-Conductor Lighting Connector Black - 224-114
Quick Find Code: 224-114
Order in the next 09:56:35
- Lighting Connector Specifically for Wall Mounting and Ceiling Luminaires
Product Overview

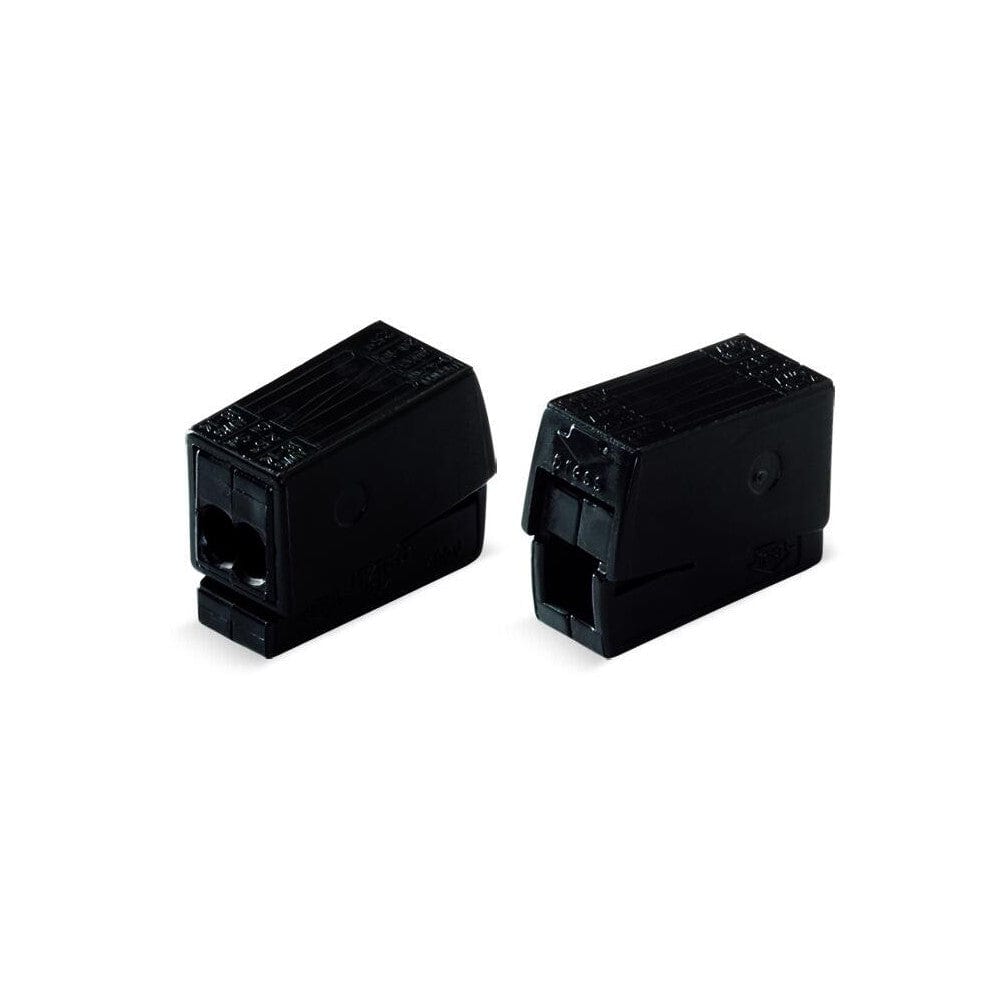

Wago 2-Conductor Lighting Connector Black - 224-114
Installation side cable acceptance, 1.0 – 2.5mm² solid pushwire
Lighting side cable acceptance, 0.5 – 2.5mm² solid and fine-stranded (flex) cage clamp
Product Overview:
- Voltage Rating: 400V
- Wire Size: 0.5 → 2.5 mm²
- Height: 15.5mm
- Width: 9.5
- Depth: 20.5mm
- Rated Current: 24A
Downloads
Specification
Cable Accessory Type | Cable Connectors |
---|---|
Colour | Black |
Current Amps | 24 A |
Old GTIN | 4044918583787 |
Voltage | 400 V |
Depth | 21 mm |
Height | 16 mm |
Width | 10 mm |
