Product Overview

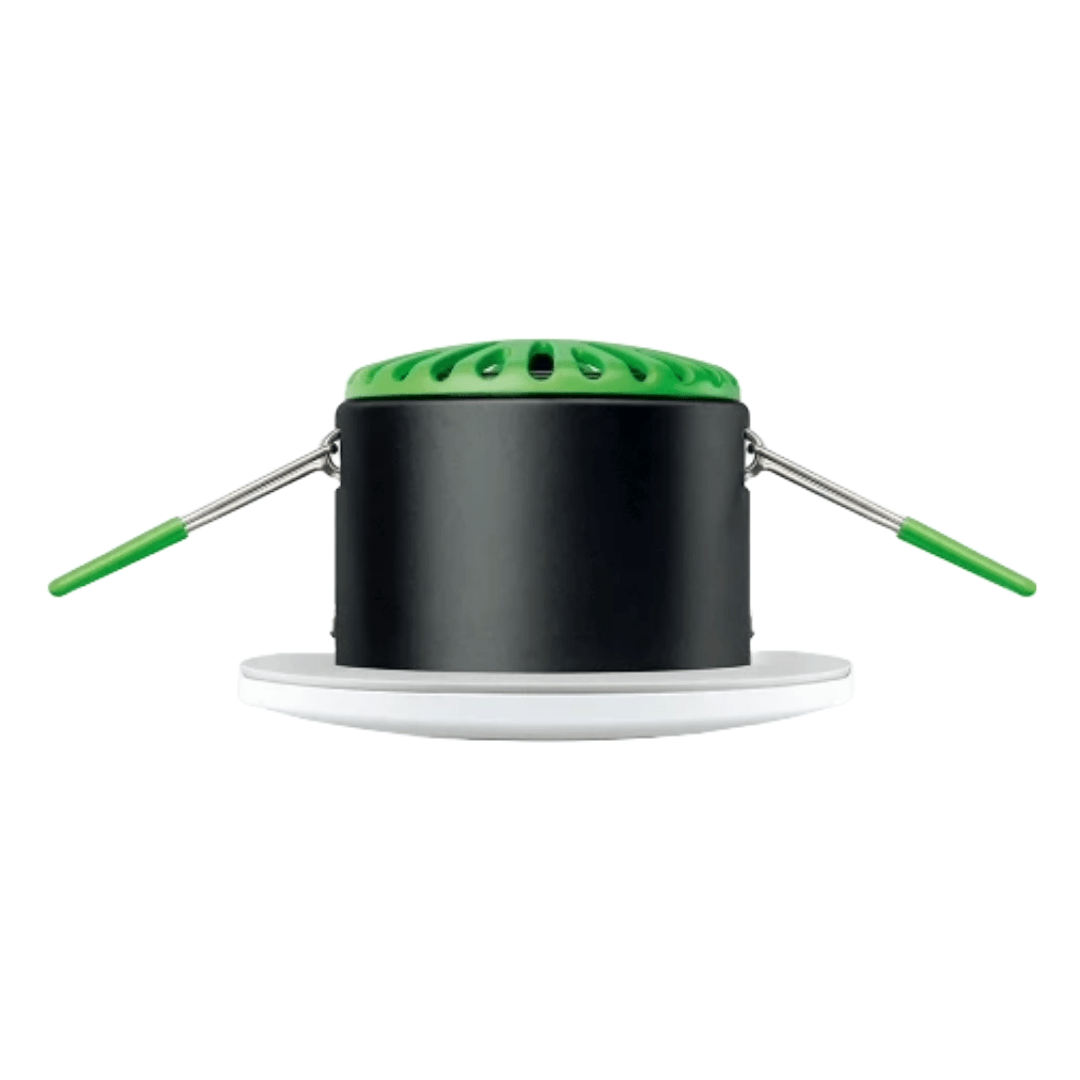

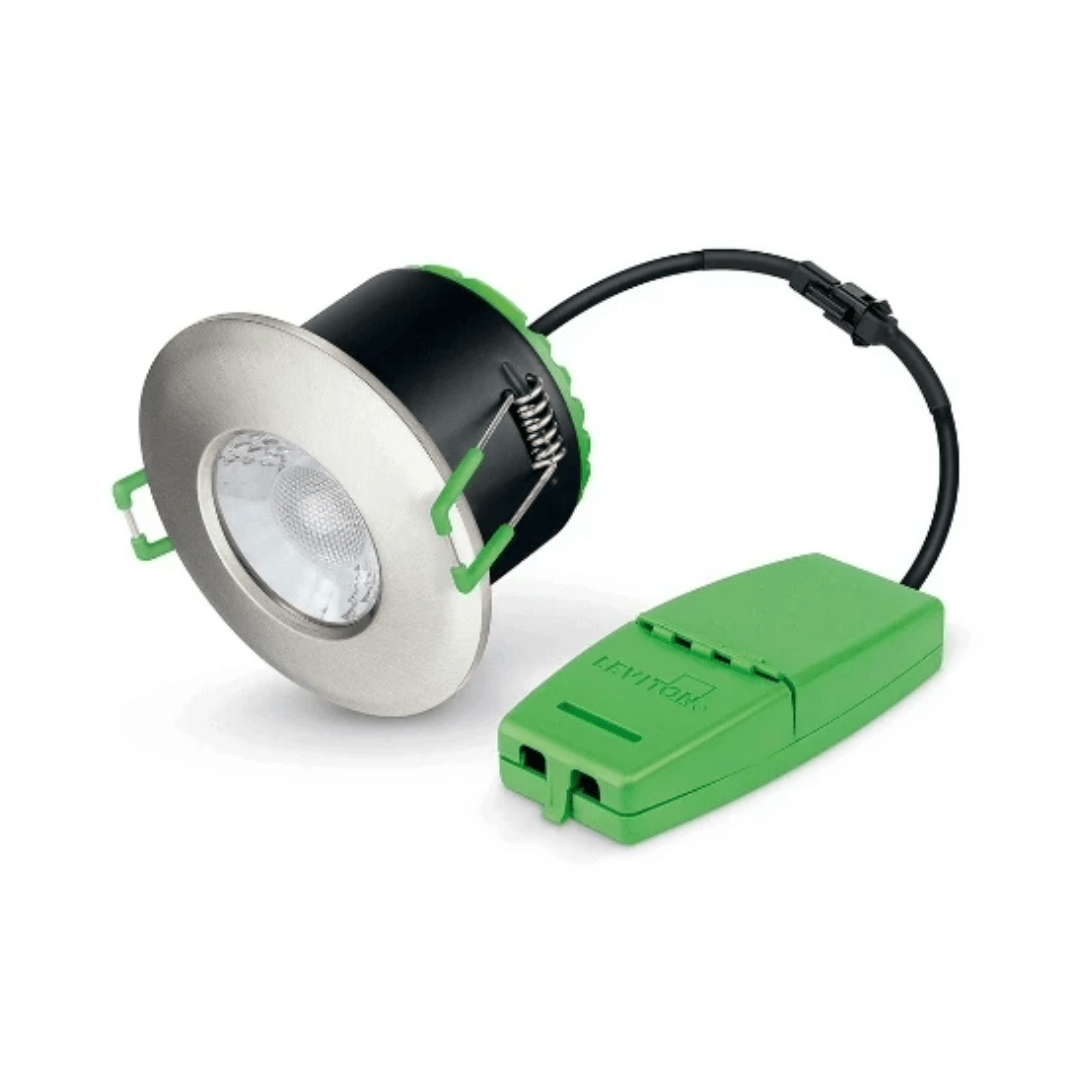

The JCC V50 Fire-rated LED Dimmable Downlight 6W 700lm IP65 Brushed Nickel (JC1001/BN) is a versatile lighting solution designed for efficiency and safety. With an actual lumen output of 650/700 and a lumens per circuit watt of 108/116, it offers bright illumination while being energy efficient. It features a two-color selectable white bezel design, adaptable for both 3000K and 4000K lighting needs. Engineered to fit within shallow 50mm ceiling voids, this ultra-low profile unit is fully fire-rated for 30, 60, and 90-minute ceilings, ensuring safety. Additionally, it's IP65 rated for bathroom use, includes strong spring clips for secure installation, and features a fast push-fit termination with a remote driver, supporting triac dimming for varied light preferences.

Downloads

Download JC1001-BN Product Manual

Download JC1001-BN Instruction Manual

Specification

Applicable Area	Bathroom, Kitchen
Bathroom Zones	1, 2, 3
Beam Angle	60°
Bezel Supplied	Yes
Collection Name	V50
Colour Temperature	4000K
Colour Temperature Minimum	3000K
CRI	80
Cutout Diameter	70mm
Dimmable	Triac Dimmable
Domestic or Commercial	Domestic, Office
Energy Rating	A+
Finish Or Colour	Brushed Nickel
Fire Rated	Yes
Fixed Or Adjustable	Fixed
Indoor or Outdoor Lighting	Indoor Lighting
IP Rating	IP65
Life Expectancy	51000h
Light Colour	Warm White to Cool White
Luckins Code	405353255
Lumens	650
Material	Steel/Aluminium
MPN	JC1001/BN
Recess Depth	50mm
Technology Type	Integrated LED
Voltage	240V
Wattage	6W
Diameter	84mm
Height	68mm
Weight	0.3kg
Width	84mm
