Product Overview

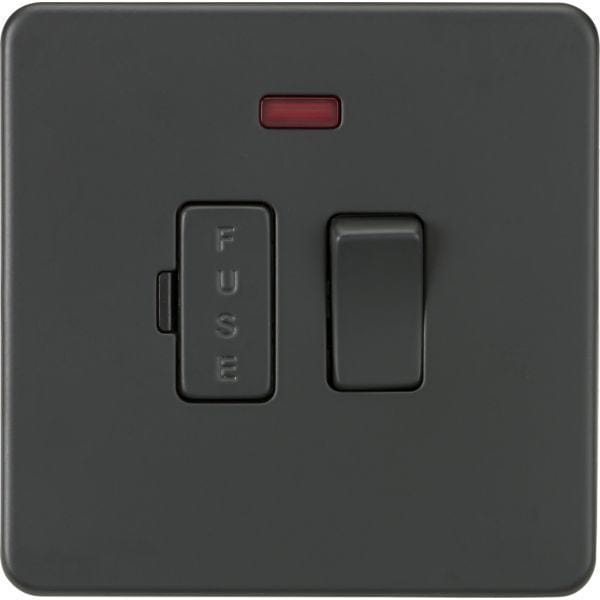

The ML Knightsbridge SF6300NAT is a screwless anthracite switched fused spur unit and indicator neon, rated at 13A.

A simple, elegant solution to circuit and appliance safety, the SF6300NAT adds sleek, modern style to the home or commercial environment with its low profile (less than 5mm thick at the plate), anthracite finish and matching fuse cover. It is manufactured from premium grade steel to ensure a long-lasting quality product.

Features

• Specification: double-pole switched fused connection unit with indicator neon
• Rated: 13A
• Minimum back box depth: 25mm
• Integrated gasket to prevent moisture transfer
• Screwless plate clips on once product is installed
• Anthracite finish
• Manufactured from premium grade steel
• Manufactured to BS 1363-4
• Dimensions (H x W x D): 87.5 x 87.5 x 4.3mm

Downloads

Download SF6300NAT

Specification

Back Box Depth Minimum	25mm
Current Amps	13A
Finish Or Colour	Anthracite
Fused	Yes
Gang	1
IP Rating	IP20
Material	Steel
MPN	SF6300NAT
Neon	Yes
Old GTIN	5056270818956
Plate Colour	Anthracite
Plate Corners	Rounded
Plate Depth	4.3mm
Plate Style	Screwless
Pole	2
Type Of Switch Socket	Fused Spur
Voltage	230V
Depth	88mm
Height	88mm
Weight	0.19kg
Width	88mm
