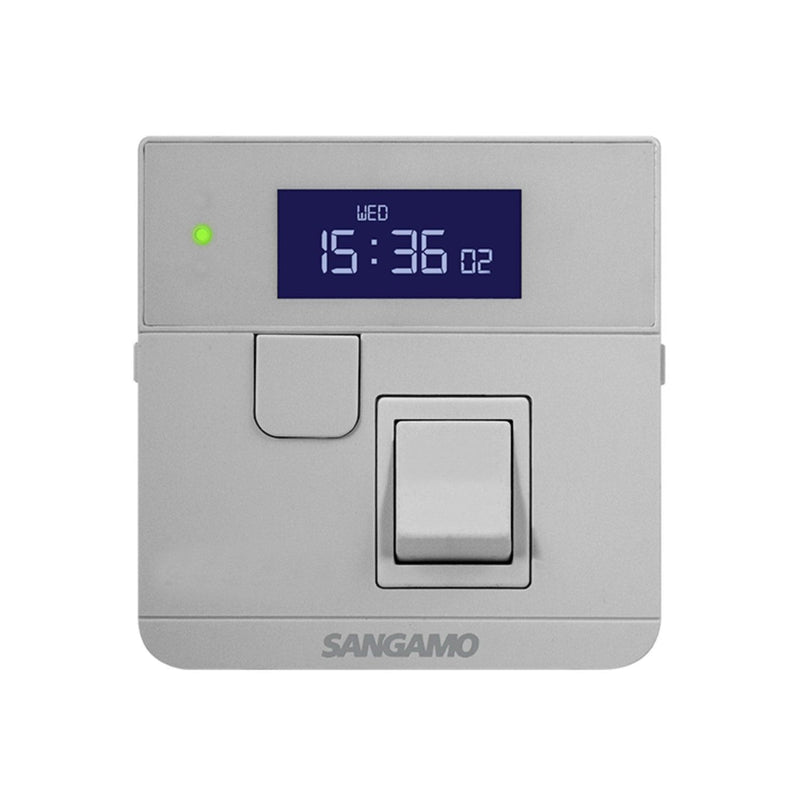

ESP Sangamo Powersaver Plus Select Controller Silver 7 Day With Fused Spur - PSPSF247S

Product Overview

Sangamo are a UK manufacturer of time clocks/heating controls, thermostats, immersion controllers & programmers. The brand is also recognised for their Round Pattern Time Switches.

PSPSF247S - Powersave Plus Select 24/7 Fused Boost Controller

• 24 hour, 5/2 day & 7 day programming
• 10 on/off programs per day
• 15 mins, 30 mins, 1 hour, 2 hour, 4 hour, and 6 hour boost function
• Clear indication display
• Button lock feature
• Summer/Winter time change
• Single gang surface (mount box included) or flush mounting
• Supplied with replaceable BS1362 13A fuse
• 13A switch rating 240vA
• Boosts: 15 mins, 30 mins, 1 hour, 2 hours, 4 hours & 6 hour
• Ingress Protection: IP20
• Temperature Rating: T40
• Fixing: Surface and flush mounting
• Operating temperature: 0°C to 40°
• Material: ABS
• Dimensions: 86mm x 86mm x 35mm (9mm D without Black Box)

Downloads

Download PSPSF247S Datasheet

Specification

Luckins Code	434561380
MPN	PSPSF247S
Old GTIN	5060654464264
Operating Temperature Maximum	40 °C
Operating Temperature Minimum	0 °C
Depth	35 mm
Height	86 mm
Weight	0.27 kg
Width	86 mm
